Siemens Siemens SW1224B1125


Description

Industry Description

SIEMENS LOW VOLTAGE ES SERIES LOAD CENTER. FACTORY INSTALLED MAINBREAKER WITH 12 1-INCH SPACES ALLOWING MAX 24 CIRCUITS. 1-PHASE 3-WIRESYSTEM RATED 120/240V (125A) 22KA INTERRUPT. SPECIAL FEATURES ALUMINUMBUS, GRAY TRIM, NEMA TYPE3R ENCLOSURE FOR OUTDOOR USE.. REPLACED BY SNW1224B1125. AVAILABLE 4/1/2020

Modified Industry Description

ES LC MB 12S/24C 1PH 125A N3R

AD Description

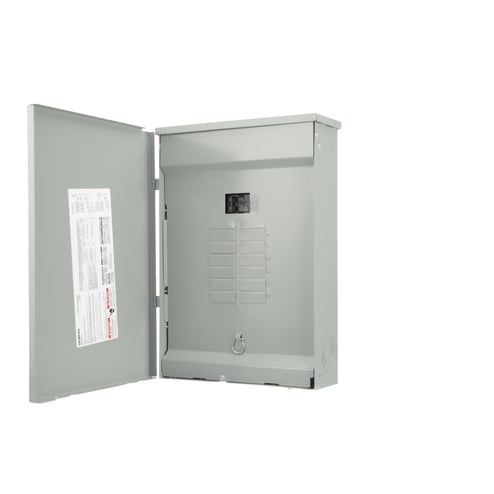

Siemens SW1224B1125 ES Series 1-Phase Low Voltage Main Breaker Load Center With Gray Trim, 120/240 VAC, 125 A, 22 kA Interrupt

Specifications

Amperage Rating
125
Application
RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Country of Origin
MX
Enclosure
TYPE3R
Frequency_Rating
N/A
Interrupt_Rating
22000
Mounting
Flush/Surface
Phase
1
Size
1840
Special Features

  • A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
  • Aluminum busbar
  • Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
  • Invertible for bottom feed application
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • The patented INSTA-WIRE™ neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
  • The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
  • The visible neutral and grounds system aids in the insertion of conductors
Standard
N/A
Sub_Brand
UL
Type
ESSERIESASSEMBLEDLOADCENTER
Voltage Rating
120
Wattage
N/A
