General Cable General Cable 83001.99.01


Description

Industry Description

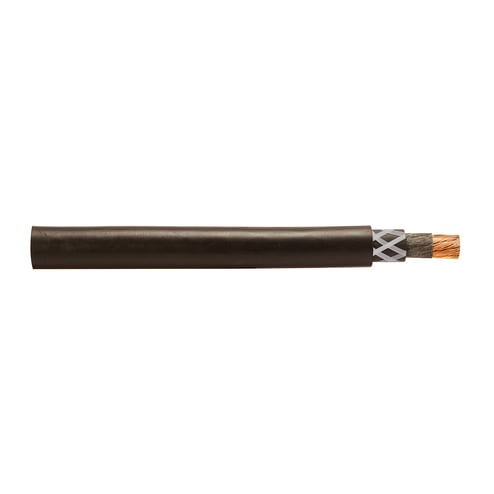

Super Vu-Tron® SGL Conductor 90°C (UL) Type W 2000V and Type RHH/RHW 600V Portable Power Cable, 1 TYPE W RHH/RHW 2KV-Black-LL Reel

AD Description

Carol® 83001.99.01 Type W/RHH/RHW Industrial Cord, 600 to 2000 VAC, (1) 1 AWG Fully Annealed Stranded Bare Copper Conductor, 1 ft L

Vendor Description

The Carol® brand line-of industrial cord products are heavy duty single conductor and multi-conductor cords that are used in various heavy duty temporary and permanent power applications where flexibility and durability are critical. The Carolprene® and super Vu-Tron® family of industrial cord represents the most comprehensive line-of products and carry a full range of listings and certifications with UL, CSA, OSHA, MSHA, ICEA and other relevant industry standards. General Cable® offers type W and type W Extra-Flex, type G, type G-GC, welding, entertainment/stage lighting and DLO constructions for applications such as portable power systems, industrial and light to medium duty mining, heavy duty service as power supply cable battery and welding leads and locomotives, shipyards and wind farms.

Specifications

Amperage Rating
220
Application
• PORT PWR SYSs • Entertainment industry activities such as theater, television, night clubs, motion pictures, mobile COMM vans, spotlights and sound SYSs • Other similar applications that would require temporary PWR • Permanent wiring of 600V PWR supplies, hoists, cranes and other applications where FLEX PWR leads must be installed in conduit or raceways
Conductor Type
Fully Annealed Stranded Bare Copper
Conductor Size
1
Country of Origin
USA
Length1
1
Number Of Conductors
1
Outside_Diameter
0.73
Special Features

  • 0.08 in THK nominal insulation
  • 8 AWG through 500 kcmil fully annealed stranded bare copper
  • An open polyester braid reinforcement is applied between the insulation and jacket for mechanical strength
  • Designed to withstand severe environmental conditions
  • Meets or exceeds flame test requirements of MSHA and UL
  • Other similar applications that would require permanent or temporary power
  • Permanent wiring of 600 VAC power supplies, hoists, cranes and other applications where flexible power leads must be installed in conduit or raceways
  • Portable power systems
  • Premium grade, 90 deg C EPDM insulation
  • Sunlight-resistant
  • Super Vu-Tron® 90 deg C jacket
  • Water-resistant
  • Withstands exposure to oil, acids, alkalies, heat, flame, moisture and chemicals
Sub_Brand
Super Vu-Tron®
Temperature_Rating
-40 to 90
Type
Type W/RHH/RHW
Voltage Rating
600 to 2000
