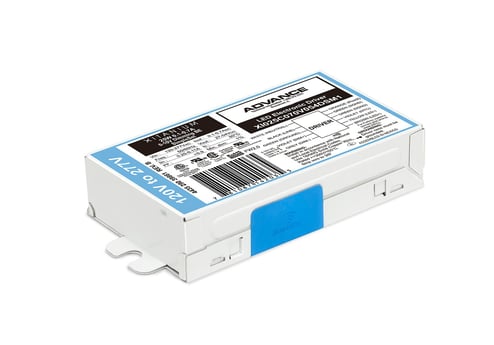

Philips Advance Philips Advance XI025C100V036DSM1M


Description

Industry Description

Signify Electronics, Xitanium, Dimmable LED Driver, 120-277 Volt AC Input, 18-36 Volt DC Output, 25 Watt Output

Modified Industry Description

Xitanium 25 W 1 A 36 V Output Max Programmable Dimmable LED Driver Module

AD Description

Advance Xitanium XI025C100V036DSM1M Dimmable LED Driver, 120 to 277 VAC Input, 36 VAC Output, 25 W, 5 in L x 2.38 in W

Vendor Description

The Philips Advance Xitanium range of downlight LED drivers is designed to provide OEMs with ultimate flexibility. These models are compatible with standard 0 to 10 VDC dimming systems to deliver reliably smooth dimming performance down to a minimum of 1%. Enabled with SimpleSet technology, these drivers offer the needed flexibility and performance for the application with precise tuning of drive currents, selectable dimming curves and adjustable minimum dimming levels. The drivers wide operating windows, compact size and simple current adjustability allow luminaire manufacturers to easily design downlight fixtures with desired lumen levels to suit the application.

Specifications

Amperage Rating
0.1-1.0
Brand Name
Philips Advance
Country of Origin
USA
DIMMABLE
True
Lamp_Type
LED
Processor
36
Special Features

  • 0 to 10 VDC dimming
  • 1% minimum dim level
  • 50000+ hr lifetime
  • A single source system offer optimized for performance
  • Compatible with Philips Fortimo downlight modules
  • Enables fixture designs with comprehensive application coverage for various loads and lumen levels
  • Enables simple, fast, flexible application specific configurations
  • Large operating window
  • SimpleSet programmable
  • SmartMate style housing enables easy design-in with excellent thermal performance
Type
LED Driver
Vendor
Signify
Voltage Rating
120/277
Wattage
25
