NSI NSi 1109A

Name: NSi 1109A
Brand: NSI
SKU: 3338142
Price: 206.89 USD
Availability: InStock

NSI 1109A

Kirby Risk #: 3338142

UPC: 78626110105, 786261101051, 00786261101051

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: NSI

Description

Industry Description

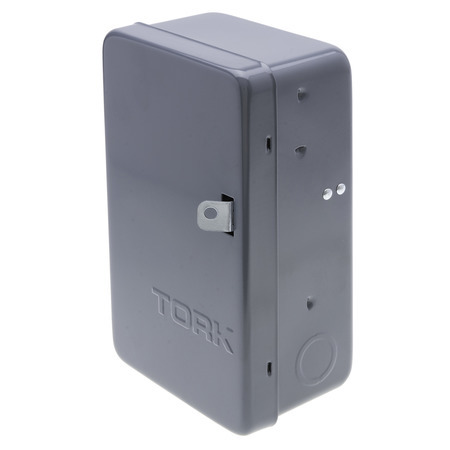

24 hour 120-277V time switch with same day ON/OFF times each day, in NEMA enclosure. DPST contacts. cULus Listed.

AD Description

NSI 1109A 1100 Mechanical Time Switch, 20 min ON/75 min OFF Setting, 120 to 277 VAC, 5 hp, DPST Contact

Action	DPST
Application	Lighting-Pumps-Signs-Air Conditioning-Watr Heaters-Fan Control
Base	Screw
Country of Origin	CHN
Enclosure	NEMA 1 Metal Indoor
Environmental_Conditions	-40 to 165 F
Frequency_Rating	60 Hz
Length1	2.9370
Mounting	Screw Mount
Number_Of_Poles	2
Operating_Temperature	-40 to 165 F
Phase	Single Phase
Size	L=4.687 - H=7.937 - W=2.937
Special Features	Dial accommodates up to 12 pairs of trippers Enclosed Motor - protects gears for extended life Manual Override - until the next regularly scheduled ON or OFF automatic operation then resumes Minimum ON is setting 20 minutes with a minimum OFF setting of 75 minutes
Standard	cULus
Sub_Brand	Mechanical Time Controls
Type	24 Hour Time Switch
