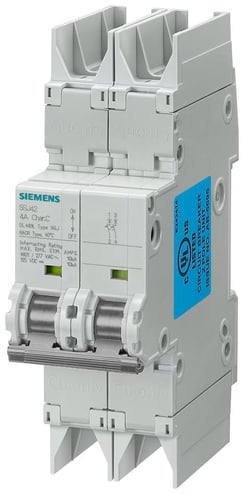

Siemens Siemens 5SJ4210-8HG42

Name: Siemens 5SJ4210-8HG42
Brand: Siemens
SKU: 3337018
Price: 219.39 USD
Availability: InStock

Siemens 5SJ4210-8HG42

Kirby Risk #: 3337018

UPC: 01869384399, 75455495997, 00754554959979

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Siemens

Description

Industry Description

CIRCUIT BREAKER 10KA, 2POLE, D, 10A ACC. TO UL 489 - 480Y/277V

Modified Industry Description

MCB 5SJ4 2P 480/277 10A 10K D-TRIP

AD Description

Siemens Sentron™ 5SJ4210-8HG42 Type NSJ Miniature Circuit Breaker, 240 VAC, 10 A, 14 kA Interrupt, 2 Poles, Thermal Magnetic Trip

Amperage Rating	10
Application	BRANCH CIRCUIT PROTECTORS
Connection	Identical wire screw connections on line and load side.
Country of Origin	DE
Dimensions	121 mm H x 36 mm W x 70 mm D
Frame	NSJ
Frequency_Rating	50
Interrupt_Rating	14
Length1	2.0500
Material	N/A
Mounting_Type	DIN Rail
Number_Of_Poles	2
Phase	1
Special Features	0.75 to 35 sq-mm solid and stranded conductors 30 deg C calibration base 35 mm DIN standard mounting rail 40 deg C calibration base (industrial applications) Can be used for field wiring applications 14 to 4 AWG copper only D-trip is designed for high inrush loads, magnetic trip point is 10 to 20 times the MCB rating Identical wire screw connections on line and load side Smaller size than traditional MCCBs Suitable for reverse feed applications Touch protection to EN50274 Visible indicator for on and off/trip
Standard	UL 489, CSA 22.2 NO. 5-02, HACR, IEC/EN 60 898, IEC/EN 60 947-2
Sub_Brand	SENTRON
Temperature_Rating	-25 to 55
Type	NSJ
Voltage Rating	240
