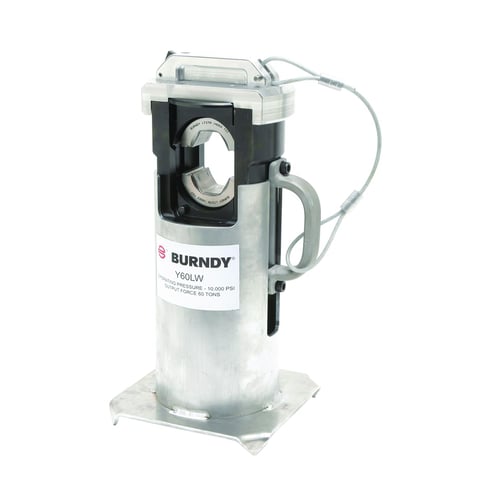

Burndy Burndy Y60LW


Description

Industry Description

60-Ton Remote Latch Head Hydraulic Crimper, Single Action Ram, 10000 psi, Stand and Case, Uses L Dies and HPS/Fargo Equivalent Dies

AD Description

BURNDY® HYPRESS™ Y60LW Remote Operated Hydraulic Crimping Tool, 4/0 AWG to 2500 kcmil Copper Crimping, 60 ton Crimping

Vendor Description

The Y60LW is a single acting, light weight 60 ton hypress designed to install transmission and distribution connectors and sleeves. The Y60LW accommodates the same "L" dies used in the Burndy Y60BHU and Y60BHUD. The "L" dies are designed for copper and aluminum code cables and aerial conductor sizes through 2500 kcmil and will accommodate ACSR through 2156 (84/19) strand. These tools are designed to be light weight and portable for easy maneuverability and will operate from any 10000 psi hydraulic source with the proper oil capacity.

Specifications

Application
Crimping
Country of Origin
US
Length1
18.0000
Special Features

  • 60 ton force developed
  • Die holders accommodates BURNDY® "L" dies (shell configuration)
  • Easy to carry with side lift handle
  • Fast easy die changing and secure die positioning with positive die release locking pins
  • Heavy duty hoisting loop
  • Large jaw opening to accommodates copper and aluminum code cables and aerial conductor sizes through 2500 kcmil and will accommodates ACSR through 2156 (84/19) strand
  • Portable, lightweight design of 43 lb
  • Protected male coupler with captive cap
  • Removable die cap is easily rotated allowing quick removal of splice connectors
  • Single acting ram with heavy duty return spring
  • Strong die retainers for ultimate life
  • Upper die cap lanyard cable enables a free hand for positioning work piece
  • Upper die cap securely locks to a positive detent position for safe operation
Sub_Brand
HYPRESS
Type
Crimpers
