Burndy Burndy YAEV8CL1


Description

Industry Description

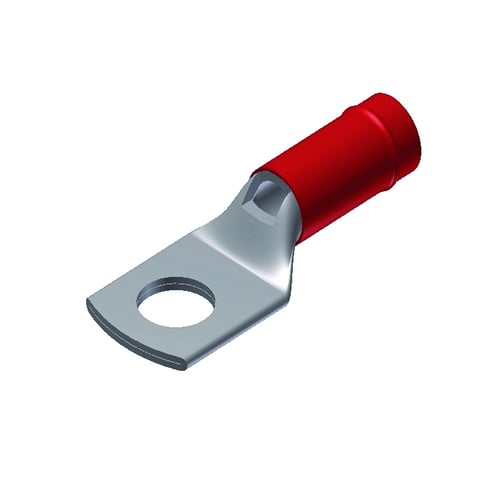

Copper Lug, Ring Tongue, 1 Hole w/ Inspection Hole, 8 AWG, 1/4" Stud, Insulated, Short Barrel, Tin Plated, 600 Volts Max.

AD Description

BURNDY® INSULUG YAEV8CL1 1-Hole Heavy Duty Compression Lug With Inspection Hole, 8 AWG Stranded Copper Conductor, 1/4 in Stud, Copper

Vendor Description

The INSULUG type YAEV is designed for very demanding high vibration applications encountered in aircraft and aboard ships as well as motor lead applications in hospitals, industrials and generating plants. The nylon insulated seamless, electrolytic copper barrel with double thick tongue provides an extra strong insulated connection. The terminal is rated 105 deg C and meets SAE-AS7928 requirements.

Specifications

Application
For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
Country of Origin
US
Insulation
True
Length1
1.4700
Material
Copper
Special Features

  • 0.33 in hole to end, 1.24 in hole to barrel length, 0.258 in Dia maximum insulation
  • 300 volt nylon insulation: high dielectric strength and stability in demanding oily environmental conditions
  • AN 8 aircraft cable size, 8 AWG copper stranded conductor
  • Double thick tongue Provides maximum reliability and electrical capacity plus an extra strong terminal tongue
  • Electro tin plated, provides long lasting corrosion resistance
  • For installation tool: non-ratchet: MY28-6 tool, ratchet: M8ND tool with N8CET-2 die, hydraulic: Y35, Y39 tool with U8CET die set
  • Manufactured from 1-piece pure electrolytic copper, provides high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties
  • Nylon insulation
  • Nylon insulation is locked in place: insulation will not move or twist off
  • Pure electrolytic tin plated
Standard
UL486;Military Specified (Mil-Spec)
Sub_Brand
INSULUG
Type
YAEV-L, Heavy Duty
