B-Line B-Line BCTS1-12

Name: B-Line BCTS1-12
Brand: B-Line
SKU: 3330959
Price: 26.99 USD
Availability: InStock

B-Line BCTS1-12

Kirby Risk #: 3330959

UPC: 79903876281

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: B-Line

Description

Modified Industry Description

12 IN 6 HOLES UP TO 1 1/4 IN EMT 1 IN RIGID SUPPORT

AD Description

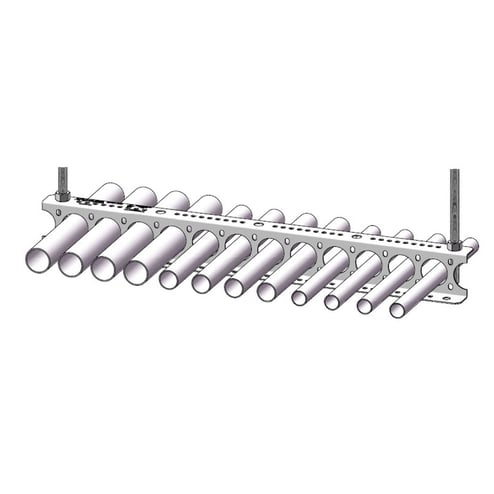

B-Line BCTS1-12 Trapeze Support, 12 in, 500 lb Load, 16 ga Steel

Application	TRAPEZE SUPPORT
Brand Name	B-Line
Color	N/A
Conductor Range	Up to 1 1/4 IN EMT 1 IN Rigid
Country of Origin	US
Finish	Galvanized
Number_Of_Holes	6
Special Features	Can also support Flextray™ and cable tray Can be supported with 3/8 or 1/2 in threaded rod or bolts by simply flipping the part from top to bottom (threaded rod and hardware is not included) Can be tiered to support multiple conduit/pipe levels Flange hole patterns provide multiple options for hanger rods, mounting hardware, or accessories Hanger rod spacing should not exceed 36 in Reduces need for conduit/pipe clamps at every support location Repeating 6 in hole pattern for field cutting UL Listed for US and Canada - 500 lb (22.2kN) load rating at 12 in hanger spacing for all three sizes - safety factor of 3 Used to support multiple runs of conduit/pipe on same elevation
Standard	UL / CUL
Sub_Brand	Bolted Framing
Trade_Size	12
Type	Conduit trapeze support
Width_2	1.0000
