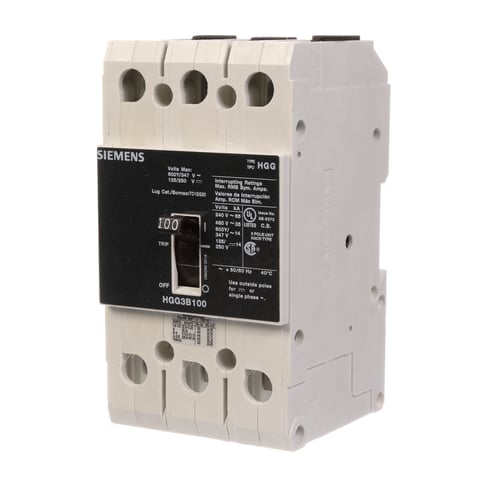

Siemens Siemens HGG3B100L


Description

Industry Description

SIEMENS LOW VOLTAGE G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED HGG FRAME WITH HIGH BREAKING CAPACITY. 100A 3-POLE (14KAIC AT 600Y/347V) (35KAIC AT 480V). SPECIAL FEATURES MOUNTS ON DIN RAIL / SCREW, LINE AND LOAD SIDE LUGS (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN 3 x 5.4x 2.8.

Modified Industry Description

BRKR HGG 100A 3P 480V 35K LUGS

AD Description

Siemens SpeedFax™ HGG3B100L Low Voltage Molded Case Circuit Breaker, 480 VAC, 100 A, 35 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Specifications

Amperage Rating
100
Application
Industrial
Connection
CABLE IN-CABLE OUT
Country of Origin
MX
Dimensions
5.4 in H x 3 in W x 2.8 in D
Frame
HGG
Frequency_Rating
50/60
Interrupt_Rating
35
Length1
4.3000
Material
MOLDED CASE CIRCUIT BREAKER
Mounting_Type
DINRAIL/SCREW
Number_Of_Poles
3
Operating_Temperature
40DEGC
Phase
3-Phase
Special_Features

  • HGG frame with high breaking capacity

Standard
UL/CSA/IEC/NOM
Temperature_Rating
40
Type
Low Voltage
Voltage Rating
480
