Thomas & Betts Thomas & Betts 160GLR
Thomas & Betts 160GLR
Kirby Risk #: 3319328
UPC: 78378663604, 783786636044, 00783786636044
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

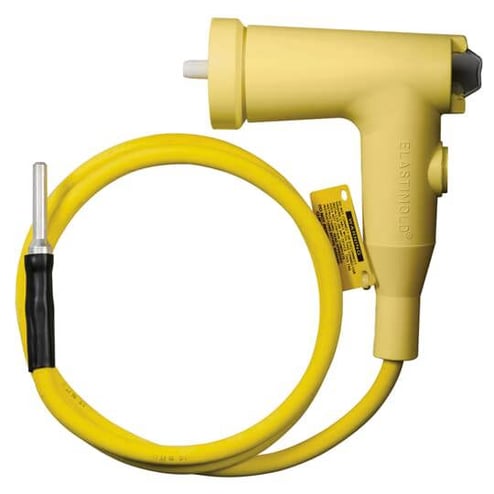

200 Amp, 15kV, Loadbreak Grounding Elbow with 1/0 AWG 6 foot Ground Lead
AD Description
Elastimold® 160GLR Insulated Loadbreak Grounding Elbow With Ground Lead Cable, 600 VAC, 200 A, 1/0 AWG Conductor, EPDM Rubber
Specifications
| Amperage Rating |
200
|
|---|---|
| Application |
15kV
|
| Color |
Yellow
|
| Connection |
Push-in
|
| Conductor Size |
1/0
|
| Country of Origin |
US
|
| Dimensions |
2.92 in Dia x 7 in W
|
| Insulation |
Yes, EPDM Rubber
|
| Length1 |
9.7500
|
| Material |
EPDM Rubber
|
| Size |
7.00 inch wide (without Probe), 6 foot 600 Volt, 1.0 Stranded, tinned copper ground lead
|
| Special Features |
|
| Standard |
ANSI/IEEE Standard 386
|
| Temperature_Rating |
-40 to +65 C
|
| Type |
Insulated
|
| Voltage Rating |
600
|
