Panduit Pan-Net Panduit Pan-Net FST2MC6EI


Description

Industry Description

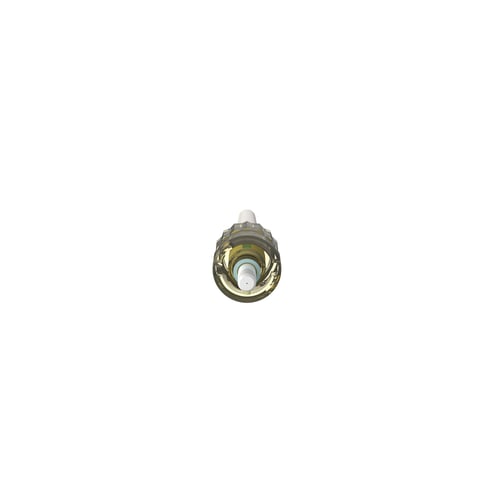

ST2 OM1 900µm multimode simplex fiber optic connector. Ivory Boot. For use with OCTT2 OptiCam fiber termination tool.

Modified Industry Description

62.5/125 ST2 OPTICAM FIBER OPTIC CONNECTOR IVORY

AD Description

Panduit® FST2MC6EI Fiber Optic Connector With Ivory Boot, ST2 Simplex Connector, OM1 62.5/125 um Multi-Mode Fiber, 900 um Buffered, Zirconia Ceramic Ferrule

Specifications

Application
Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect.
Boot_Color
Electric Ivory
Brand Name
Panduit Pan-Net
Color
Electric Ivory
Connection
ST
Connector_1_Type
ST2
Country of Origin
CRI
Fiber_Size
900?m
Fiber_Type
OM1
Insertion_Loss
NA
Material
Ceramic
Special Features

  • Dual cam design with fiber and buffer clamps secures both the fiber and the buffer during the camming step to facilitate consistent termination results, reduces the termination time compared to conventional termination methods
  • Factory pre-polished fiber stub end face eliminates inconsistent and time consuming field polishing to deliver required optical performance
  • Mechanical cable retention consistently provides higher than industry standard cable retention, requires no adhesive, speeding installation
  • Non-optical disconnect design maintains data transmission under tensile loads
  • Reduces termination time (less than half the time of field polish connectors) and the number of installation tools required
  • Translucent inner housing assembly facilitates inspection of the fiber termination quality, results in rapid installations, improved termination yields and lower installed costs
Standard
RoHS Compliant; TIA/EIA-604 FOCIS-2 compliant; exceeds TIA/EIA-568-D.3 requirements
Sub_Brand
OptiCam?®
Temperature_Rating
140
Type
Fiber Optic Connectors, ST2 OptiCam
Width_2
3.2000
