TPI TPI FSS95203

Name: TPI FSS95203
Brand: TPI
SKU: 3306688
Price: 2473.50 USD
Availability: InStock

TPI FSS95203

Kirby Risk #: 3306688

UPC: 68633448831, 686334488310, 00686334488310

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: TPI

Description

Industry Description

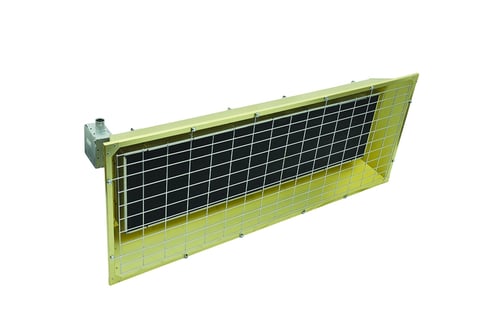

9.5KW 208V Heavy Duty Overhead Infrared Flat Panel Emitter Suspension Mount

AD Description

TPI FSS95203 FSS 1/3 Phase Heavy Duty Flat Standard Electric Infrared Overhead Heater, 32414 Btu/hr Capacity, 208 VAC, 9.5 kW Power Rating

Amperage Rating	45.67 A, 26.39 A
Application	Indoor Spot Heating, Zone or Total Area Heating
Country of Origin	US
Dimensions	49 in L x 7-3/4 in W x 20 in D
Finish	Gold Anodized
Length1	12.0000
Material	Aluminum
Mounting	Chain Suspension/Rigid Mount
Mounting_Type	Chain Suspension/Rigid
Phase	1-3
Power_Rating	9500
Series	FSS
Special Features	1 elements per heater 25000 hr element life expectancy 64337-017 FSS replacement element Approximately 78.5% efficient vs 50%% efficiency of metal sheath elements Field wiring box mounted on each heater Gold anodized aluminum housing for efficient, long term reflectivity and corrosion-resistance Heavy duty flat panel emitter electric overhead Heavy duty wire guard factory installed High density medium wave radiant heat with 60 deg symmetric heat pattern L brackets included for chain suspension or rigid mounting More uniform heat pattern than metal sheath Rugged flat panel emitter, great for high vibration areas
Standard	cETLus Listed
Type	1/3-Phase Heavy Duty Flat Standard
Voltage Rating	208
Wattage	9500
