Lightolier Lightolier 2EVG48LH840-4-D-UNV-DIM


Description

Industry Description

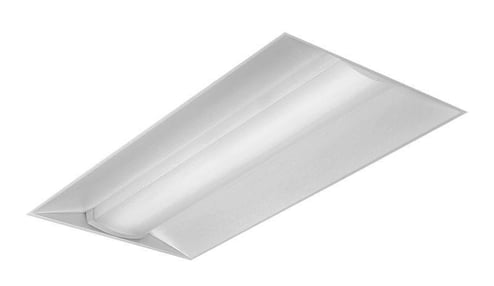

EvoGrid Recessed Architectural LED provides general lighting perfect for a wide variety of applications. Its soft opal diffuser with large luminous area minimizes apparent brightness compared to other based luminaires.

AD Description

Signify Luminaires Day-Brite 2-EV-G-48L-H-840-4-D-UNV-DIM EvoGrid Air Return High Efficiency Recessed Lighting, LED Lamp, 36 W Fixture, Grid Ceiling Opening, 120 to 277 VAC

Vendor Description

The Philips Day-Brite/Philips CFI EvoGrid recessed LED utilizes highly reliable and efficient Philips LED platform boards and dimmable driver enabling market leading performance in its category. Its soft opal diffuser with large luminous area minimizes apparent brightness compared to other basket luminaries and provides general lighting perfect for a wide variety of applications.

Specifications

Application
Indoor Commercial
Country of Origin
USA
Dimensions
4 ft L x 2 ft W
Lamp_Type
LED
Length1
48.0000
Lumens
4800
Mounting_Type
Ceiling
Series
EvoGrid
Special Features

  • A highly efficient, visually comfortable, architecturally styled recessed LED luminaire designed with a minimalistic strategy to achieve sustainable objectives
  • Continuous row mount option (CRM) includes wireway covers on each end and on one side of housing
  • Daylight sensors are integral to each luminaire, eliminating the need for daylight zoning, daylight sensing is automatic and re-calibration occurs daily when luminaries turn on
  • Directs a controlled amount of light to the higher angles in the room to balance the brightness of the surfaces and eliminate "cave effect" while creating the impression of a larger, brighter space without glare
  • Integral sensor options for occupancy sensing and/or daylight harvesting are available for additional energy savings with no reduction of life or increase in installation labor
  • LED board is easily accessible from below without tools, single LED board is replaceable if needed via plug-in connectors to ensure long service life
  • LEDs are an excellent source for use with controls since dimming or frequent switching does not degrade the performance or life of the source, integral or external sensors are available for use
  • Less energy required for construction and assembly
  • Less material, less packaging required, reduced weight
  • Low profile configuration is only 2-3/4 in deep, requiring minimal plenum space
  • Luminaire finish is matte white polyester for a high quality, durable finish
  • More luminaries can be shipped per truck to reduce fuel use and emissions
  • Multiple lumen packages over a wide range to provide significant application flexibility over light levels and/or luminaire spacing
  • Opal diffuser provides soft, comfortable lighting while maintaining high efficiency
  • Optional SpaceWise automated wireless technology provides integrated occupancy sensing and daylight harvesting for additional control and energy savings
  • Requiring no system re-wiring, SpaceWise technology is appropriate for retrofit or new design and is an ideal replacement system for typical office layouts
  • Soft opal diffuser with large luminous area minimizes apparent brightness and provides high visual comfort
  • SpaceWise remote control must be purchased separately, other peripherals include code compliant, wireless, battery less switches and external sensors
  • T-bar grid clips are integral to body
  • Total luminaire efficacy as high as 119 LPW
Sub_Brand
DayBrite
Type
Air Return High Efficiency
Vendor
Signify
Voltage Rating
120 to 277
