3M 3M T/R+POUCH


Description

Industry Description

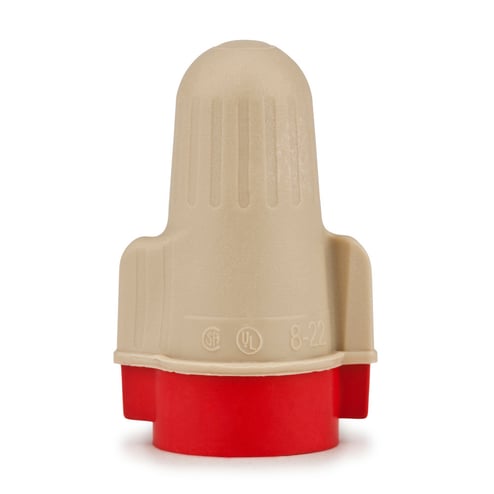

Super Tan/Red Wire Connector (100/Pouch)

Modified Industry Description

TAN/RED PERFORMANCE PLUS WIRE CONNECTOR

AD Description

3M™ 051128-54454 Performance Plus T/R+ Flame Retardant Insulated Twist-On Wire Connector, Winged Shell, Live Action/Square Wire Spring, 22 to 8 AWG Aluminum/Copper Wire, Spring Steel

Vendor Description

Specifically created for the residential markets, the T/R+ replaces the yellow, tan and red connectors in the majority of field applications.

Specifications

Brand Name
3M
Color
Tan/Red
Conductor Range
22 - 8
Connection
Twist On
Country of Origin
USA
Material
Spring Steel
Package_Quantity
1000
Special Features

  • (2)18 AWG up to (5) 12 AWG wire combinations
  • 100/Box
  • 1000 V for signs, fixtures or luminaires
  • Compact size and red miniskirt
  • Corrosion resistant coating
  • One connector replaces 3 (yellow, red & tan) in the majority of all field applications
  • Polypropylene and thermoplastic elastomer insulation
  • Quick bite spring design
  • Simplifies selection of the right connector for a wide range of wiring jobs
  • Smooth, comfortable feel
  • Specifically created for the residential markets
Temperature_Rating
221
Type
Wire Nut
Voltage Rating
600
Wire_Type
Aluminum/Copper
