Southwire Southwire SOOW-2/4-BLACK-NONUL-CUT
Southwire SOOW-2/4-BLACK-NONUL-CUT
Kirby Risk #: 3296943
UPC: 03288608114, 032886081149, 00032886081149
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Southwire
Description
Industry Description
2 STR CU 4/C BLACK/WHITE/RED/GREEN SOOW BLACK 90C 600V PAPER NON-UL/NON-CSA 500 FT
Modified Industry Description
2/4 SOOW BLACK 600V NON UL CUT
AD Description
Royal® 55808905 Type SOOW Flexible Cord, 600 VAC, (4) 2 AWG Annealed Stranded Bare Copper Conductor, 500 ft Reel L
Vendor Description

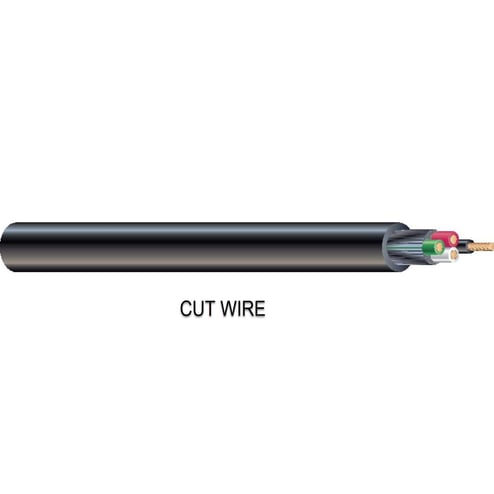

Southwire® Viper® unlisted SOOW flexible cords are manufactured using bare flexible rope-stranded annealed copper conductors with a heat, moisture, ozone and oil resistant EPDM rubber insulation. The insulated conductors are cabled with paper fillers. A tissue-paper separator is wrapped around the assembly to promote easy removal of the jacket. A heat, moisture and oil resistant flexible CPE jacket is extruded over the assembly.
Specifications
| Application |
FLEXCORD
|
|---|---|
| Brand Name |
Southwire
|
| Color |
Black
|
| Conductor Material |
Copper
|
| Conductor Size |
2
|
| Construction |
CPE JACKET
|
| Core |
2
|
| Country of Origin |
USA
|
| Functions |
N/A
|
| Number Of Conductors |
4
|
| Number_Of_Outlets |
N/A
|
| Outside_Diameter |
1.21
|
| Package_Quantity |
500.000
|
| Plug_Type |
N/A
|
| Special Features |
|
| Sub_Brand |
Royal?®
|
| Type |
SOOW
|
| Voltage Rating |
600
|
