Thomas & Betts Thomas & Betts XD010-TB


Description

Industry Description

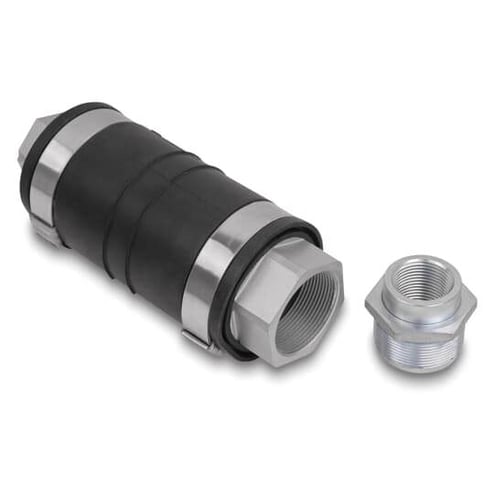

4 Inch XD Cast Iron Expansion/Deflection Coupling with Electro Zinc Plating

Modified Industry Description

4 INCH EXP/DEFL COUPLING

AD Description

T&B® XD010-TB XD Series Expansion/Deflection Coupling, 4 in, For Use With Rigid Conduits, Ductile Cast Iron, Electroplated Zinc

Vendor Description

T&B® pioneered many industry standard rigid fittings including CHASE® nipples and Erickson® couplings. The innovation continues with BlueKote® conduit bodies and many new features and products for ordinary and hazardous locations.

Specifications

Application
Bridges, Tunnels, Inter-Building Walkways, Docks and Piers and Wastewater and Water Treatment Facilities
Country of Origin
CN
Finish
Electro Plated Zinc
Length1
165.0000
Material
Ductile Cast Iron
Series
XD Series
Size
4
Special Features

  • Accommodates axial expansion/contraction up to 3/4 in
  • Angular misalignment up to 30 deg
  • Copper ground mounting plates and internal grounding bonding jumper both entirely enclosed to safeguard against theft
  • Durable stainless steel inner sleeve provides a constant, smooth inner diameter in any position to ease wire pulling and protect wire insulation from damage
  • Includes an Erickson® type conduit union for faster, easier installation to reduce labor costs
  • NPT threaded hubs fit standard threaded rigid metal conduit
  • Parallel deflection up to 3/4 in
  • Watertight flexible neoprene outer jacket, zinc plated and acrylic painted hubs and stainless steel Tamper proof straps ensure superior corrosion resistance, ideal for use in harsh environment
Standard
CSA, UL E23018
Type
XD Expansion/Deflection Couplings
