Panduit Pan-Net Panduit Pan-Net ISTPHCH5MTL
Panduit Pan-Net ISTPHCH5MTL
Kirby Risk #: 3284799
UPC: 07498384869, 074983848690, 00074983848690
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit Pan-Net
Description
Industry Description

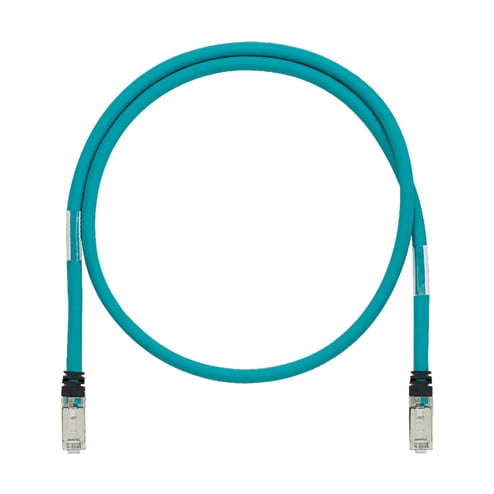

Patch cord, IndustrialNET, category 5e, shielded, 600V, RJ45 plug to RJ45 plug, teal, 5 meter.
Modified Industry Description
PC,INDNET,CAT5E,SHLD,600V,TL,5M
AD Description
Panduit® IndustrialNet™ ISTPHCH5MTL CM/CMX Patch Cord, Cat 5e, 24 AWG SF/UTP Shielded Stranded Copper Conductor, RJ45 Modular Plug Connector, 5 m L Cord
Vendor Description
Industrial patch cords shall be constructed of category 5e, industrial grade, 24 AWG stranded, twisted 4-pair shielded SF/UTP cable with a flame retardant (CM) thermoplastic elastomer (TPE) jacket. patch cord cable shall be offered in multiple colors and lengths for design flexibility. each patch cord shall be pre-terminated to include category 5e RJ45 shielded modular plugs on each end, with a black strain relief boot and wired according to the T568A standard. each patch cord is designed to support high flex applications and is rated for 600 VAC panel or on machine applications when the space is shared with high voltage power cables.
Specifications
| Application |
(1) 10BASE-T (Ethernet) (2) 100BASE-T (Fast Ethernet) (3) 1000BASE-T (Gigabit Ethernet) (4) Industrial Ethernet (5) Ethernet/IP (6) Control Panel deployments featuring power source voltages (7) Uplinks featuring gigabit data transmission from the control
|
|---|---|
| Color |
Teal
|
| Conductor Type |
SF/UTP Stranded Copper
|
| Conductor Size |
24
|
| Country of Origin |
CRI
|
| Length1 |
8.9000
|
| Material |
Copper
|
| Number Of Conductors |
RJ45 8(8)
|
| Outside_Diameter |
0.28
|
| Plug_Type |
Modular Plug
|
| Series |
ISTPHCH
|
| Special Features |
|
| Standard |
Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D standards at swept frequencies up to 100MHz; Meets ODVA Ethernet/IP electrical and mechanical performance requirements; Meets all applicable ANSI/TIA-968-A r
|
| Sub_Brand |
IndustrialNet?„?
|
| Temperature_Rating |
-4 to 158
|
| Type |
CM/CMX Shielded
|
| Voltage Rating |
600
|
