Ideal Ideal 85-371


Description

Modified Industry Description

CAT5E FEED THRU RJ45 MODULAR PLUG 50 PACK

AD Description

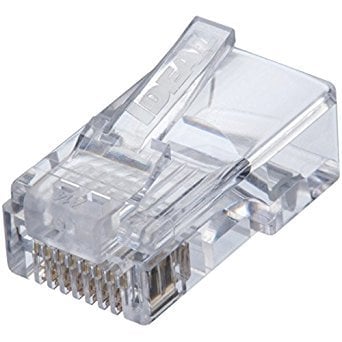

IDEAL® 85-371 8-Postion 8-Contact RJ45 Feed-Thru Modular Plug, Solid/Stranded Conductor, Plastic, 100 Ohm

Vendor Description

The New IDEAL® feed-thru cat 5e 8P8C (eight position/eight contact) modular plug connector is the first feed-thru style connector and tool solution to offer a flush cut of the excess conductor to the face of the modular plug. A patent pending design enables conductors to be cut flush with the end face of the connector when used with the FT-45™ tool (30-495). The flush cut eliminates inadvertent contact among adjacent conductors or with the mating jack. Conductor spacing is maintained for reliable performance in PoE and data applications.

Specifications

Brand Name
Ideal
Country of Origin
TWN
Special Features

  • 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
  • 8-position, 8-contact RJ45 modular plug for cat 5e, 100 Ohm balanced twisted pair 250 MHz cables
  • Designed for best performance when used with the IDEAL® FT-45™ crimp tool (30-495)
  • Flush cut of excess conductors minimizes inadvertent contact outside of the plug
  • New feed-thru design simplifies connector to cable assembly
Width_2
6.2500
Width_3
20.2500
