Allied Moulded Allied Moulded AM1868LW


Description

Industry Description

Type:NEMA 4X Type: Nonmetallic Enclosure Special Features: Hinged snap latch type, overlapping and viewing window cover design with FIP formed-in-place polyurethane gasket system Application:Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less Material:ULTRAGUARD - Fiberglass reinforced polyester - thermoset Size:A=18.40", B=16.40", C=8.13", usable depth=7.68" Color:RAL 7035 - Gray with clear window Mounting:Stainless steel feet fastened to back side brass inserts

Modified Industry Description

18X16X8 ENCL SNAP LATCH HNG CVR WDW

AD Description

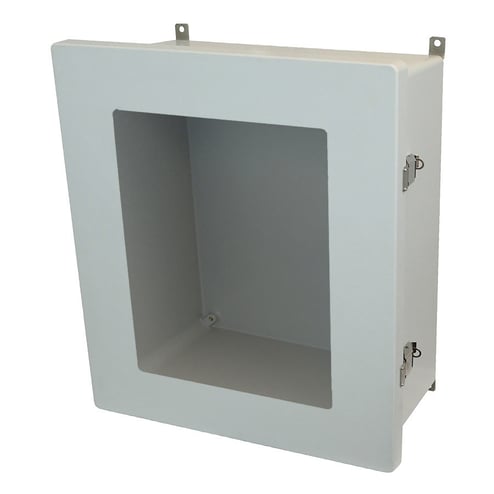

Allied Moulded AM1868LW JIC Size Junction Box With Matching Cover, 18.4 in L x 16.4 in W x 8.13 in D, Flat/Hinged Clear Window Cover, NEMA 4X, ULTRAGUARD® Fiberglass Reinforced Polyester/Thermoset

Specifications

Application
Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less
Color
Colorless/Light Gray
Construction
Compression molded
Country of Origin
USA
Insulation
Nonconductive nonmetallic
Length1
18.4000
Material
ULTRAGUARD - Fiberglass reinforced polyester - thermoset
Mounting
Stainless steel feet fastened to back side brass inserts
Size
A=18.40, B=16.40, C=8.13, usable depth=7.68
Special Features

  • Hinged snap latch type, overlapping and viewing window cover design with formed-in-place polyurethane gasket system
  • Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel
  • Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover
  • Stainless steel feet fastened to back side brass inserts
Standard
UL 508A - Industrial Control Panels
Sub_Brand
AM JIC
Type
NEMA 4X Nonmetallic Enclosure
