Appleton Appleton ADR6044RS
Appleton ADR6044RS
Kirby Risk #: 3274703
UPC: 78138171091, 781381710916, 00781381710916
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Appleton
Description
Industry Description
Powertite Grounding Style 1 Receptacle, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex), Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Co
AD Description

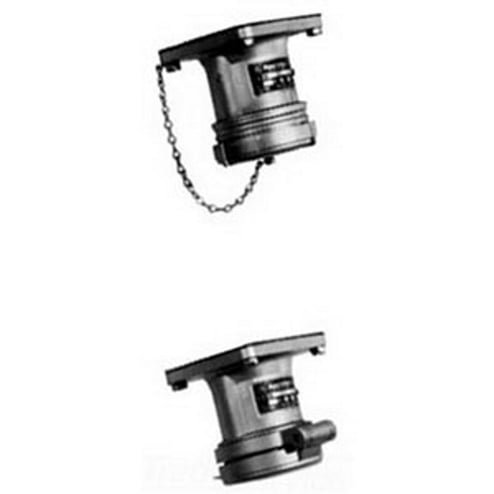

Appleton® Powertite® ADR6044RS 3-Phase S Grounding Style 1 Pin and Sleeve Receptacle With Spring Door and Reverse Service, 600/250 VAC/VDC, 60 A, 4 Poles, 4 Wires
Vendor Description
Powertite® Series Plugs, Connectors and Receptacles use our versatile pin and sleeve design to provide safe, reliable power for any type of heavy duty equipment, fixed or portable. Available in 30, 60, 100, 150, 200 and 400 A designs, they feature widely spaced contacts recessed within an internal arc snuffing chamber, insulating blocks, positive polarization and a durable neoprene sealing bushing. Shell only or shell plus extra pole grounding provides safe, "make first, break last" grounding.
Specifications
| Amperage Rating |
60
|
|---|---|
| Application |
For ACP6044BC Metallic Clamping Ring Plug
|
| Connection |
Pressure Wire Terminal
|
| Conductor Size |
6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex)
|
| Country of Origin |
MX
|
| Length1 |
8.0000
|
| Material |
Copperfree (4/10 Of 1 PCT Maximum) Aluminum
|
| Mounting |
Box
|
| NEMA_Rating |
NEMA 3, 3R, 4, 4X
|
| Number_Of_Poles |
4
|
| Phase |
3
|
| Special Features |
|
| Standard |
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
|
| Sub_Brand |
Powertite
|
| Temperature_Rating |
-40 to 107
|
| Type |
Grounding Style 1 Receptacle
|
| Voltage Rating |
600//250
|
