Siemens Siemens 49107-02FL


Description

Industry Description

320A 7J RGLS 1POS LVRBPS MS OH/UG AL ENC

AD Description

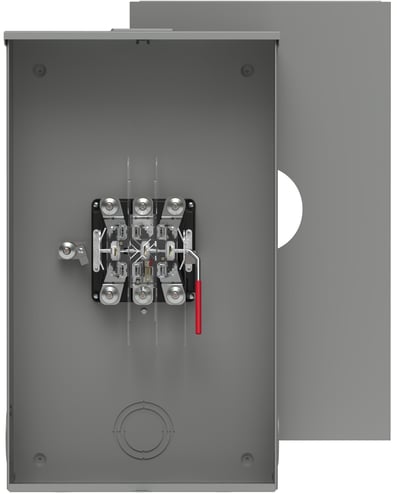

TALON® 49107-02FL Type HQ 1-Position Continuous Duty Meter Socket With Lever Bypass, Coverplate, Ground Lug, 600 VAC, 320 A, 3 ph Phase, NEMA 3R Enclosure

Specifications

Amperage Rating
320
Application
Commercial
Country of Origin
MX
Enclosure
Aluminum
Frequency_Rating
False
Length1
37.0000
Mounting
SURFACEMOUNTING
Operating_Temperature
Average Ambient
Phase
3
Size
7.000X21.000X37.000
Special Features

  • 1/2-20 stud terminal connector
  • 100% rated lever bypass with clamping action on meter
  • Constructed of 14 ga galvannealed steel with polyester powder finish
  • Cover cannot be replaced with lever in bypass position
  • Factory installed lug or stud connection
  • Glass fiber reinforced polyester, high strength arc and track resistant block assembly
  • Lever operated jaw release, moving lever up closes bypass and unclamps meter blade
  • Meter blade to jaw terminal arcing is eliminated
  • Narrow enclosure design
  • Plated copper current path
  • Silver brazed connection
  • Terminals are 1/2 in cold headed zinc-plated steel stud with nuts and captive belleville washer to accommodate various pressure type lug
  • The insert is field installable but cannot be removed in the field
  • The insert rejects normal width terminal blade, yet admits the MS-E narrower upper right hand blade
  • Track resistant transparent polycarbonate insulating safety shield and fiber insulating barriers provide protection from accidental shorts and shocks
Standard
UL
Type
HQ
Voltage Rating
600
