Federal Signal Federal Signal RSL-LMS-O-C

Industry Description

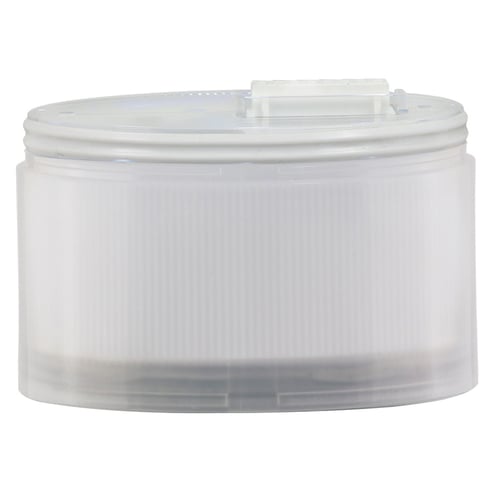

Radiant Steady Light Module, Opaque Lens, Clear - Modular design allows up to 7 light modules, 6 light modules plus 1 sound module (1 channel) or 5 light modules plus 1 sound module (2 channels). Steady light effect with 6 LEDs. Five lamp/lens colors: Amber, Blue, Clear, Green and Red. Two lens types: Fresnel and Opaque. Compatible with 12-24VAC/DC or 120-240VAC (Voltage dependent on selected wiring module). Indoor/Outdoor use. PLC compatible. Type 4X, IP65, IP69K enclosure when installed with both gaskets included on each module. RoHS Compliant. UL and Cul Listed, CE Certified.

AD Description

Federal Signal Radiant RSL-LMS-O-C Type LMS Light Module, 120 to 240 VAC, 12 to 24 VAC/VDC, LED Lamp, Surface Mounting, Clear, UL/cUL Listed, CE Certified

Vendor Description

RSL-LMS offers a steady LED light with high optical performance. Its modular design and simple functionality are the right choice for a basic stack light application. RSL-LMS-F consists of a colored fresnel lens with a colored light source. The use of a colored lens with the same colored light source allows optimization of the emission frequency, producing a rich intense light output. RSL-LMS-O consists of an opaque colored lens with a colored light source. The opaque characteristic allows an optimally diffused light without disturbing the operator.
