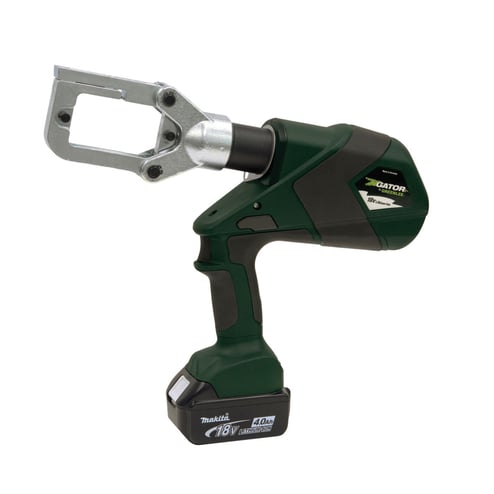

Greenlee Greenlee E6CCXLXB


Description

Industry Description

6 Ton Multi Tool, Li-Ion Standard Base Bare Tool. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. State of the art 18V Lithium Ion (Li-ion) battery provides 70 percent more cycles per charge and faster cycle times. Retraction Stop Repeat (RSR) allows the operator to partially retract the ram and then the tool repeats the retraction for subsequent crimps. LED light provides the operator with the battery charge and tool maintenance status. Two-stage hydraulic system provides fast advance and power speeds, saving time. Forward handle position improves tool balance. One trigger controls all tool functions. Crimping head rotates 350°. Tools automatically retract when the crimping cycle is complete. Overmolded tacky grip areas make gripping the tool easier and more comfortable. LED work light illuminates dark work areas. Greenlee battery-powered crimping tools now use bio-degradable oil. Smart Chargers control the charging current, charging voltage and battery temperature to maximize battery life. Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger. Use optional CCX blades and adapters. U.S. Patent #6,206,663, #6,532,790. When used with Greenlee KC22 and KA22 dies in combination with Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas& Betts® color-coded connectors, connections up to 600 kcmil (copper) and 350 kcmil (aluminum) are UL and cUL classified. These tools also accept Greenlee, Burndy®, Kearney®, Blackburn®, Panduit® and Thomas & Betts® dies used for 6-ton tools. They can drive knockout punches up through 2" diameter.

Modified Industry Description

MULTI TOOL, 6 T LI, STD, BARE

AD Description

Greenlee® Gator® E6CCXLXB E6CCXLX Cordless Standard Multi Tool Die Crimper, 600 kcmil Copper, 350 kcmil Aluminum Crimping, 6 ton Crimping, 18 V, Li-Ion Battery, 14-3/4 in OAL

Specifications

Application
6 Ton Crimping/Cutting
Conductor Size
8 AWG - 600 kcmil Cu, 8 AWG - 350 kcmil Al
Country of Origin
DE
Length1
23.0000
Series
E6CCXLX
Special Features

  • Available with 120 V, 12 V or 230 V battery charger or with 120 V or 230 V corded adapter in place of batteries and charger
  • Crimping head rotates 350 deg
  • Equipped with Bluetooth™ communication enabled via the Greenlee® Gator® eye app
  • Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real time tool feedback
  • Forward handle position improves tool balance
  • Greenlee® battery powered crimping tools now use bio-degradable oil
  • Intelligent crimping system technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • LED light provides the operator with the battery charge and tool maintenance status
  • LED work light illuminates dark work areas
  • One trigger controls all tool functions
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • Retraction stop repeat (RSR) allows the operator to partially retract the ram and then the tool repeats the retraction for subsequent crimps
  • Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
  • State of the art 18 V lithium-ion (lithium-ion) battery provides 70% more cycles per charge and faster cycle times
  • These tools also accept Greenlee, Burndy®, Kearney®, Blackburn®, Panduit® and Thomas & Betts® dies used for 6 ton tools
  • They can drive knockout punches up through 2 in diameter
  • Tools automatically retract when the crimping cycle is complete
  • Two-stage hydraulic system provides fast advance and power speeds, saving time
  • U.S. patent #6,206,663, #6,532,790 when used with Greenlee KC22 and KA22 dies in combination with Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas& Betts® color-coded connectors, connections up to 600 kcmil (copper) and 350 kcmil (aluminum) are UL and cUL classified
  • Use optional CCX blades and adapters
Standard
C/US UL Listed
Sub_Brand
Gator
Type
Cordless Standard
Voltage Rating
18
