Greenlee Greenlee EK12IDLX12


Description

Industry Description

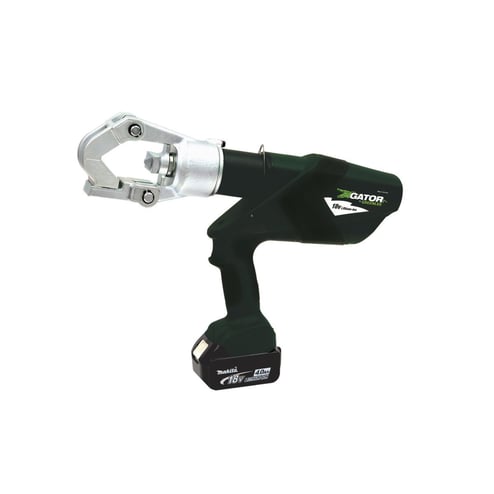

Gator® 12-Ton Battery-Powered Indent Crimper with 12V charger. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Dieless indent style crimping head does not require interchangeable crimping dies. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. State of the art 18V lithium ion (Li-ion) battery provides 70 percent more cycles per charge and faster cycle times. Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy. LED light provides the operator with the battery charge and tool maintenance status. Two-stage hydraulic system provides fast advance and power speeds, saving time. Forward handle position improves tool balance. One trigger controls all tool functions. Crimping head rotates 350°. Tools automatically retract when the crimping cycle is complete. Overmolded tacky grip areas make gripping the tool easier and more comfortable. LED work light illuminates dark work areas. Greenlee battery-powered crimping tools now use bio-degradable oil. Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Flip open crimping head will allow crimping of 4 AWG - 1000 kcmil copper or 6 AWG - 1000 kcmil aluminum with no dies to change.

Modified Industry Description

CRIMPER INDENT, 12T LI, STD, 12V

AD Description

Greenlee® EK12IDLX12 EK12IDLX Cordless Standard Indent Dieless Crimper With 12 V Charger, 1000 kcmil Aluminum/Copper Crimping, 12 ton Crimping, 18 V, Li-Ion Battery, 16-1/2 in OAL

Specifications

Application
12 Ton Crimping
Conductor Size
4 AWG - 1000 kcmil Cu, 6 AWG - 1000 kcmil Al
Country of Origin
DE
Dimensions
14-1/2 in H
Length1
27.0000
Series
EK12IDLX
Special Features

  • Automatic retraction stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
  • Available with 120 V, 12 V or 230 V battery charger or with 120 V or 230 V corded adapter in place of batteries and charger
  • Crimping head rotates 350 deg
  • Dieless indent style crimping head does not require interchangeable crimping dies
  • Equipped with Bluetooth™ communication enabled via the Greenlee® Gator® eye app
  • Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real time tool feedback
  • Flip open crimping head will allow crimping of 4 AWG to 1000 kcmil copper or 6 AWG to 1000 kcmil aluminum with no dies to change
  • Forward handle position improves tool balance
  • Greenlee® battery powered crimping tools now use bio-degradable oil
  • Intelligent crimping system technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • LED light provides the operator with the battery charge and tool maintenance status
  • LED work light illuminates dark work areas
  • One trigger controls all tool functions
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
  • State of the art 18 V lithium-ion (lithium-ion) battery provides 70% more cycles per charge and faster cycle times
  • Tools automatically retract when the crimping cycle is complete
  • Two-stage hydraulic system provides fast advance and power speeds, saving time
Standard
C/US UL Listed
Sub_Brand
Gator
Type
Cordless Standard
Voltage Rating
18
