Greenlee Greenlee EK6IDLX120


Description

Industry Description

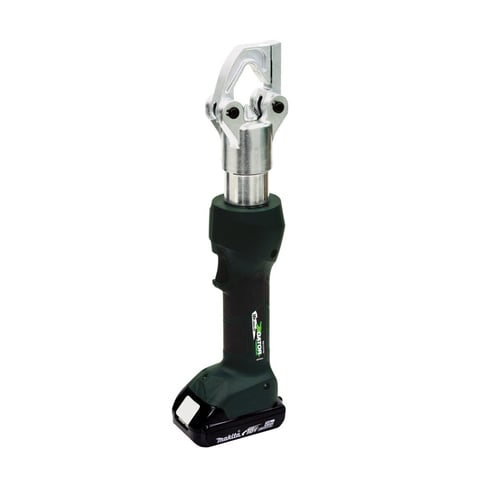

Gator® 6 Ton Indent Crimper EK6IDLX with 120V AC Adapter. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Dual stage telescopic cylinder. The EK6IDL consists of two individual pistons (large exterior and a small interior one). The interior small piston transmits a force of 30kN and features two functions. First it fixes cable lugs and connectors to the correct position prior to crimping operations. Secondly it crimps smaller cross sections up to 1/0 AWG. The large exterior piston transmits a force of 60kN and crimps all larger cross sections. Managed by Intelli-Crimp, the variable 30kN / 60kN cylinder safeguards that the optimal crimp performance is always being achieved regardless of the cross section. Extremely large crimp range is ensured, copper material 8AWG-500MCM and aluminum material 1/0AWG-350MCM. Compact design, low weight and heavy duty performance. The EK6ID offers all well known advantages of the Greenlee Gator line of products. Pressure sensor for the electronic control of crimping operation. Automatic retraction, ARS (Automatic Retraction Stop). Single trigger operation. Extreme Accountability: Risk of wrong selection of dies is eliminated. Clear marking of crimped connectors enables subsequent control. Electronic control of crimping operation – Proven Intelli-Crimp technology of all Gator crimping tools. Gator Eye Compatibility.

Modified Industry Description

CRIMPER INDENT, 6T LI, STD, 120V AC

AD Description

Greenlee® Gator® EK6IDLX120 EK6IDLX Cordless Standard Indent Dieless Crimper With 120 VAC Adapter, 500 kcmil Copper, 350 kcmil Aluminum Crimping, 6 ton Crimping, 18 V, Li-Ion Battery, 15-3/4 in OAL

Specifications

Application
6 Ton Crimping
Conductor Size
Standard Strand, 8 AWG - 500 kcmil Cu, 1/0 AWG - 350 kcmil AlFine Strand, 8 AWG - 350 Kcmil CuDLO, 8 AWG - 373.3 Kcmil Cu
Country of Origin
DE
Length1
23.0000
Series
EK6IDLX
Special Features

  • Automatic retraction, ARS (automatic retraction stop)
  • Clear marking of crimped connectors enables subsequent control
  • Compact design low weight and heavy duty performance
  • Dual stage telescopic cylinder
  • Electronic control of crimping operation, proven Intelli-Crimp™ technology of all Gator® crimping tools
  • Equipped with Bluetooth™ communication enabled via the Greenlee® Gator® eye app
  • Extreme accountability - risk of wrong selection of dies is eliminated
  • Extremely large crimp range is ensured, copper material 8 AWG - 500 MCM and aluminum material 1/0 AWG - 350 MCM
  • Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real time tool feedback
  • First it fixes cable lugs and connectors to the correct position prior to crimping operations
  • Gator® eye compatibility
  • Managed by Intelli-Crimp™, the variable 30 kN/60 kN cylinder safeguards that the optimal crimp performance is always being achieved regardless of the cross section
  • Pressure sensor for the electronic control of crimping operation
  • Secondly it crimps smaller cross sections up to 1/0 AWG
  • Single trigger operation
  • The EK6IDL consists of two individual pistons large exterior and a small interior one, the interior small piston transmits a force of 30 kN and features two functions
  • The large exterior piston transmits a force of 60kN and crimps all larger cross sections
Standard
C/US UL Listed
Sub_Brand
Gator
Type
Cordless Standard
Voltage Rating
18
