Greenlee Greenlee EK425LXDBG11


Description

Industry Description

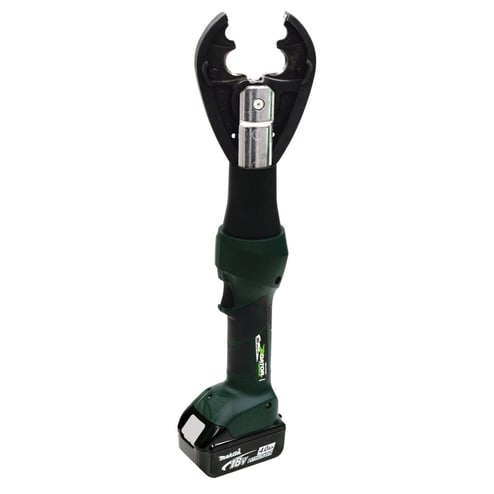

EK425LX 6 Ton Crimper with CJD3BG Jaws and 120V Charger. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Operated with one hand, leaving the other hand free to position the cable and connector. The crimping jaws open wide to fit easily over connectors. In-line tool style is lightweight and very easy to control. To help prepare for a crimp, the jaws can be jogged closed until they just grip the connector, allowing the operator to position the cable in the connector before finishing the crimp. Completes about 325 crimps per battery charge on 4/0 AWG splices. When a crimp is fully completed, the EK425LX signals the operator by automatically opening the jaws. It is then ready to make the next crimp. And, when the crimping jaws need to be opened before a crimp is complete, the operator can simply push a button on the back side of the tool. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications.

Modified Industry Description

CRIMPER, 6T LI, STD, CJD3BG, 120V

AD Description

Greenlee® Gator® EK425LXDBG11 EK425LX Cordless Standard Die Crimper With CJD3BG Jaws and 120 V Charger, 6 ton Crimping, 18 V, Li-Ion Battery, 18-1/2 in OAL

Specifications

Application
6 Ton Crimping
Conductor Size
Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR
Country of Origin
DE
Dimensions
4 in W
Length1
23.0000
Series
EK425LX
Special Features

  • Equipped with Bluetooth™ communication enabled via the Greenlee® Gator® eye app
  • Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real time tool feedback
  • In line tool style is lightweight and very easy to control
  • Intelligent crimping system technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • The crimping jaws open wide to fit easily over connectors
  • The EK425LX is operated with one-hand, leaving the other hand free to position the cable and connector
  • The EK425LX will complete about 325 crimps per battery charge on 4/0 AWG splices
  • To help prepare for a crimp, the jaws can be jogged closed until they just grip the connector, allowing the operator to position the cable in the connector before finishing the crimp
  • When a crimp is fully completed, the EK425LX signals the operator by automatically opening the jaws, it is then ready to make the next crimp
  • When the crimping jaws need to be opened before a crimp is complete, the operator can simply push a button on the back side of the tool
Standard
C/US UL Listed
Sub_Brand
Gator
Type
Cordless Standard
Voltage Rating
18
