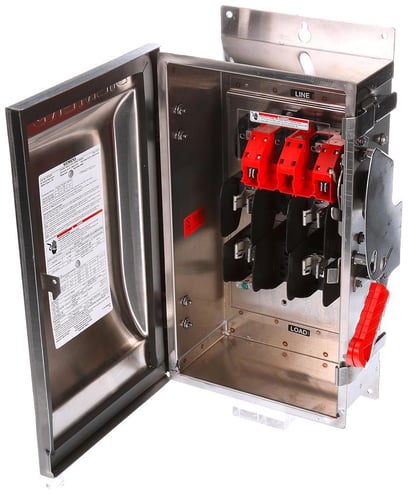

Siemens Siemens HF364NS


Description

Industry Description

Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 3-Pole 3-Fuse and solid neutral Fused in a type 4/4X 304 grade Stainless Steel enclosure. Rated 600VAC (200A).

Modified Industry Description

HDSS FUS 3P4W 600V 200A N4X

AD Description

Siemens HF364NS Fusible Heavy Duty Safety Switch With Neutral, 600 VAC, 200 A, 60/150 hp, 3 Poles

Specifications

Actuator
SINGLETHROW
Amperage Rating
200
Application
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Connection
MECHANICALLUGS
Country of Origin
MX
Enclosure
NEMA4X
Frequency_Rating
TRUE
Length1
34.8000
Material
304STAINLESSSTEEL
Mounting
Surface
Number_Of_Poles
3
Operating_Temperature
-29
Special Features

  • Arc chutes dissipate heat and prolong switch life
  • Center punch provided for field drilling to allow ON padlocking
  • Defeatable dual cover interlock
  • Door latch securely holds door closed and allows cover padlocking
  • Drawn cover for increased rigidity and resistance to abuse
  • Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication
  • Front removable mechanical lugs that are suitable for copper/aluminum 60 or 75 deg C conductors
  • Generous top, bottom and side gutters that meet or exceed NEC wire-bending space requirements
  • Handle can be padlocked in the OFF position with up to (3) padlocks with 5/16 in hasps
  • Highly visible red handle grip, designed for hook stick operation
  • Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
  • Informative door labeling which includes replacement parts list
  • Lugs are field convertible to copper body and to a wide variety of compression connectors
  • Quick-make, quick-break operating mechanism that ensures positive operation
  • Side-hinged door that opens past 180 degrees for easier wiring
  • Spring reinforced fuse clips that assure reliable contact for cool operation
  • Tangential knockouts through 600 A for easy conduit lineup
  • Top key hole and bottom mounting holes provide easy 2 or 3 point mounting
  • Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installer's hands
  • Visible blade, double-break switching action
Standard
UL98
Sub_Brand
VBII
Type
HEAVYDUTYSWITCH
