Cooper Wiring Cooper Wiring 1221LA


Description

Industry Description

SW Tog SP 20A 120/277V Const Grad B&S LA 4735653

AD Description

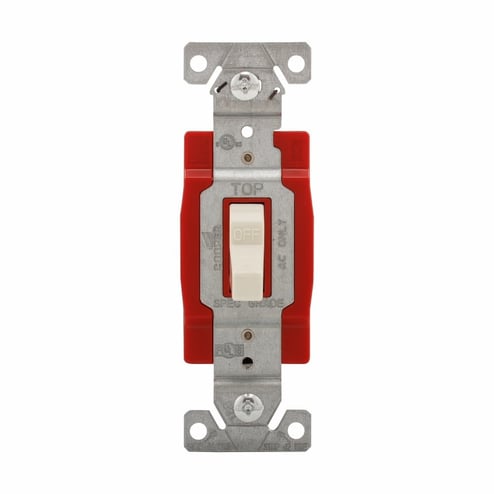

EATON Arrow Hart® 1221LA 1220 Construction Grade Toggle Switch, 120/277 VAC, 20 A, 1 hp

Vendor Description

Arrow Hart® construction grade AC toggle switches incorporate the most durable design elements in the industry and are horsepower rated to handle motor loads.

Specifications

Amperage Rating
20 A
Application
NON-RESI SWITCHES
Color
Light Almond
Country of Origin
CN
Dimensions
1.3100 X 0.8800 X 3.2800
Length1
1.3100
Material
Plastic
Number_Of_Poles
1
Special Features

  • 1-piece brass contact arm assures proper contact for low resistance switching
  • 14 to 10 AWG wire
  • Automatic grounding eliminates need for bonding jumper in metal enclosures
  • Back and side wire terminals accept up to 10 AWG solid or stranded wire
  • Color coded top housing helps identify amperage
  • Dual back wire holes for maximum feed through wiring flexibility
  • Rugged thermoplastic top and bottom housing provides durability and strength
  • Tri-combo terminal and mounting screws for flexibility in installation
Standard
NOM,cULus Listed,UL
Sub_Brand
Eaton Wiring Devices
Type
Commercial
Voltage Rating
120/277
