Cooper Wiring Cooper Wiring AH8400RD


Description

Industry Description

Recp HG Dup 20A 250V 2P3W Str B/Swire RD 4705236

AD Description

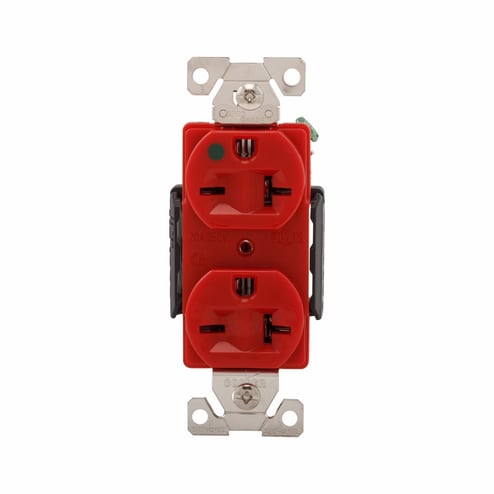

EATON Arrow Hart™ Eaton Wiring Devices AH8400RD Duplex Illuminated Premium Straight Blade Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Red

Vendor Description

Hospital specification grade straight blade receptacles - premium back wire and side wire. Arrow Hart™ feature rich line of hospital grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and Federal Specification W-C-596 to provide a consistent means of connectivity where downtime can be critical.

Specifications

Application
INDUSTRIAL RECEPTACLES
Country of Origin
MX
Dimensions
1.3000 X 0.8800 X 4.1900
Length1
1.3000
Special Features

  • 0.05 in (1.27 mm) solid brass mounting strap with non-riveted, integral 1-piece grounding system for highest durability assures superior ground integrity and corrosion-resistant under heaviest use
  • 14 to 10 AWG wire terminal
  • All terminal and mounting screws are plated, Triple-combination (slot/Phillips®/Robertson) head for superior corrosion-resistance and maximum flexibility
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Exclusive 5-leaf brass line contacts provide consistent performance and superior plug-resistant
  • Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces
  • Flush mounting
  • High impact and chemical-resistant nylon face
  • Long, broad mounting strap helps reach large panel cut-outs for code compliance
  • Nylon face, glass filled nylon base
  • Rigid, glass reinforced nylon base lends ultimate strength and superior high heat resistance in contact carrier
  • Tapered back wiring lead-in slots assist in gathering stranded wires for faster, more secure connections
Standard
Federal Specification Classification 6233 01,UL
Sub_Brand
Eaton Wiring Devices
Type
Industrial
