Cooper Wiring Cooper Wiring 8300GY


Description

Industry Description

Recp HG Dup 20A125V 2P3W Str Comp B&S GY 4705533

AD Description

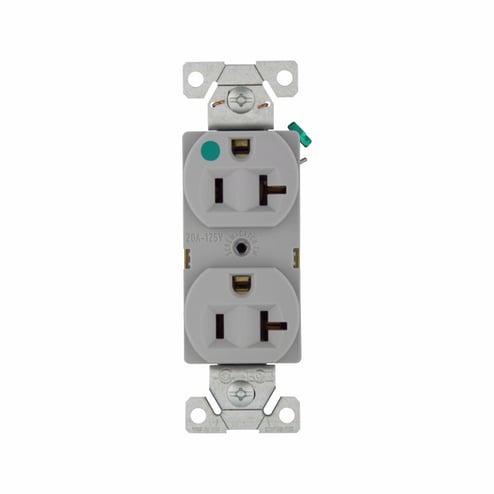

EATON Arrow Hart™ Eaton Wiring Devices 8300GY Single Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray

Vendor Description

Hospital specification grade straight blade receptacles - back wire and side wire. Arrow Hart™ feature rich line of hospital grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and Federal Specification W-C-596 to provide a consistent means of connectivity where downtime can be critical.

Specifications

Application
INDUSTRIAL RECEPTACLES
Country of Origin
US
Dimensions
1.3000 X 0.8800 X 4.1900
Length1
1.3000
Special Features

  • 14 to 10 AWG wire terminal
  • All terminal and mounting screws Triple-combination (slot/Phillips®/Robertson) head for maximum installer flexibility
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Long, broad mounting strap helps reach large panel cut-outs for code compliance
  • Nylon insulation
  • Screw catch feature on duplex devices speeds mounting of wallplates
  • Tapered back wiring lead-in slots assist in gathering stranded wires for faster, more secure connections
  • Wall mount
Standard
NOM,UL,Federal Specification Classification 6233 01
Sub_Brand
Eaton Wiring Devices
Type
Industrial
