Cooper Wiring Cooper Wiring TRBR20LABXSP


Description

Industry Description

Recp TR Duplex 20A 125V 2P3W Str B&S LA 4668722

AD Description

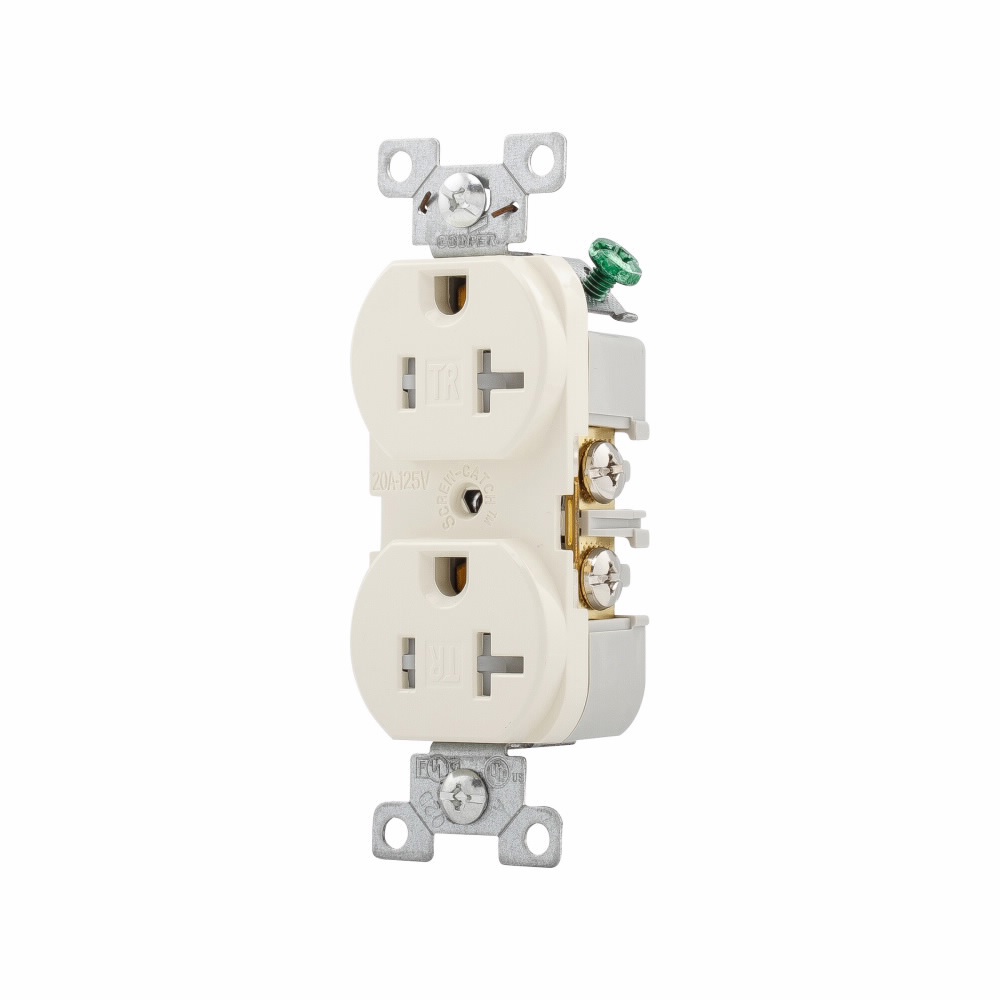

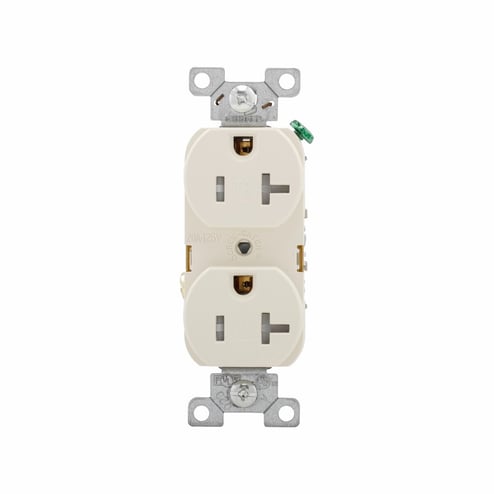

EATON Arrow Hart™ Eaton Wiring Devices TRBR20LABXSP Duplex Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond

Vendor Description

Commercial specification grade straight blade receptacles - tamper-resistant 20 A, 125 VAC, NEMA 5-20R. provides compliance with 2011 NEC® Article 406.12 that states that all receptacles installed in dwelling units must be tamper-resistant. "TR" designation provides visual identification.

Specifications

Application
NON-RESI RECEPTACLE
Country of Origin
CN
Dimensions
1.2400 X 0.7900 X 4.0000
Length1
1.2400
Special Features

  • 14 to 10 AWG wire terminal
  • Durable impact-resistant thermoplastic face and back body is virtually unbreakable and also chemical-resistant
  • Extra long and extra wide mounting straps
  • Flush mounting
  • Provides compliance with 2014 NEC Article 406.12
  • Side wire terminals accept up to 10 AWG solid/stranded wire
  • Terminal screws are backed out and ready-to wire
  • TR designation provides visual identification that device has Tamper-resistant shutters preventing the insertion of foreign objects
Standard
cULus Listed,NOM
Sub_Brand
Eaton Wiring Devices
Type
Commercial
