Cooper Wiring Cooper Wiring TR1107LA


Description

Industry Description

Recp TR Deco Duplex 15A 125V 2P3W LA 4666421

AD Description

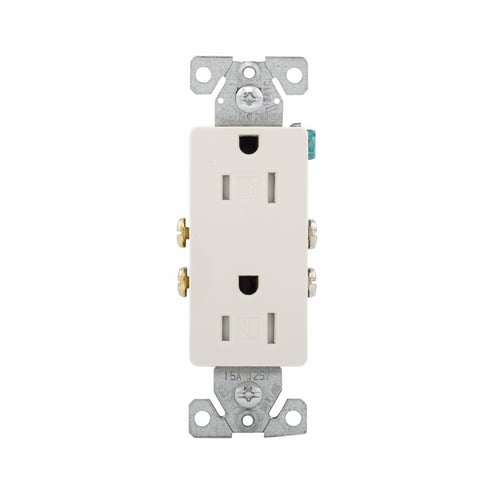

EATON TR1107LA Duplex Decorator Straight Blade Tamper Resistant Grounding Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Light Almond

Vendor Description

Tamper resistant decorator receptacles with auto ground provides compliance with 2011 NEC article 406.12 that states that all receptacles installed in dwelling units must be tamper resistant. Durable impact resistant thermoplastic face and back body is virtually unbreakable. TR designation provides visual identification. Terminal screws are backed out and ready to wire. Extra long and extra wide mounting straps with patented built-in wire stripper for #14 and #12 wire to speed installation. Side wire terminals accept up to #10 solid or stranded wire and push-in terminals accept #14 solid wire.

Specifications

Application
STD GRD RECEPTS DECR
Country of Origin
US
Dimensions
1.3000 X 0.6900 X 3.8100
Length1
1.3000
Special Features

  • 14 to 10 AWG wire
  • Double wipe ground contacts ensure long term ground retention
  • Easy access split circuit break off tab
  • Flush mounting
  • Longer, wider bridged strap provides 40% more contact area with wallboard, virtually eliminating floating installations
  • Patented built-in wire looper for pre-looping
  • Tri combo screws accept slotted, Phillips® and Robertson head tools for installation flexibility
Standard
cULus Listed,NOM
Sub_Brand
Eaton Wiring Devices
Type
Residential
