Cooper Wiring Cooper Wiring 271B-BOX

Name: Cooper Wiring 271B-BOX
Brand: Cooper Wiring
SKU: 3260311
Price: 21.10 USD
Availability: InStock

Cooper Wiring 271B-BOX

Kirby Risk #: 3260311

UPC: 03266416030, 032664160301, 00032664160301

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Cooper Wiring

Description

Industry Description

Switch Duplex Comb SP/SP 15A 120V BR 4160301

Modified Industry Description

15 A 125V Single Pole Switch and Single Pole Switch Brown Combo

AD Description

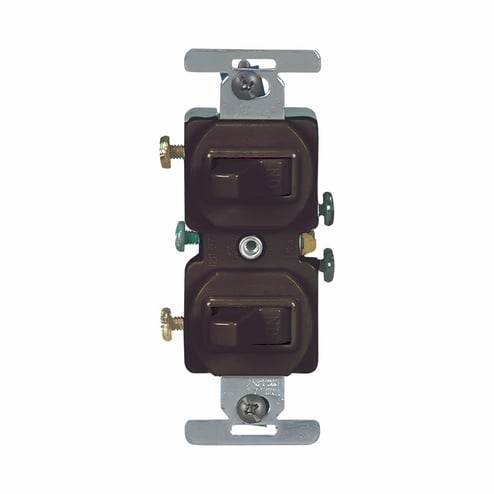

EATON Arrow Hart™ Eaton Wiring Devices 271B-BOX Duplex Heavy Duty Toggle Combination Switch, 15 A at 120 VAC, 1 Poles

Action	Switch
Actuator	Toggle
Amperage Rating	15
Application	Commercial
Brand Name	Cooper Wiring
Color	Brown
Connection	SCREW
Contact_Configuration	Heavy Duty Brass
Country of Origin	CN
Enclosure	Thermoplastic Top and Backbody are Virtually Unbreakable
Environmental_Conditions	-20 to 60 deg C Operating Temperature, V-2 Per UL94 Flammability
Material	Thermoplastic
Mounting	Surface
Number_Of_Poles	1
Operating_Cycles	30000
Operating_Temperature	-20 To 60 Deg C
Size	1.37 in W x 0.88 in D
Special Features	2-toggle switch, duplex Break-off provision for wiring both devices on same circuit or on separate circuits Combination slot Phillips® head mounting and terminal screws ease installation Grounding terminal screw standard Heavy duty brass contact Mounting straps are zinc plated to for added corrosion-resistance Pilot light may be wired to indicate power On or power Off Receptacles have triple wire line contacts and double wipe ground contacts to insure long term plug retention Screw connection Side wire terminals accept up to 10 AWG solid or stranded wire Switch action Terminal screws backed out ready for wiring Thermoplastic top and back body are virtually unbreakable THK steel mounting strap zinc plated for corrosion-resistance
Standard	NOM,cULus Listed,RoHS Compliant
Sub_Brand	Eaton Wiring Devices
Type	Duplex Heavy Duty
Voltage Rating	120
