Cooper Wiring Cooper Wiring TR8200V


Description

Industry Description

Recp HG TR Dup 15A 125V 2P3W Str B&S IV 4554506

AD Description

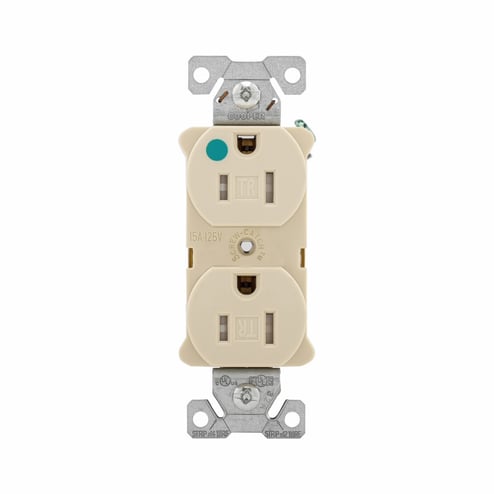

EATON Arrow Hart™ Eaton Wiring Devices TR8200V Compact Duplex Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory

Vendor Description

Hospital specification grade straight blade tamper-resistant receptacles - back wire and side wire. Arrow Hart™ feature rich line of hospital grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and Federal Specification W-C-596 to provide a consistent means of connectivity where downtime can be critical. provides compliance with 2011 NEC® Article 406.12 that states that all receptacles installed in dwelling units must be tamper-resistant. TR designation provides visual identification.

Specifications

Application
INDUSTRIAL RECEPTACLES
Country of Origin
CN
Dimensions
1.3000 X 1.1000 X 4.1900
Length1
1.3000
Special Features

  • 14 to 10 AWG wire terminal
  • All terminal and mounting screws Triple-combination (slot/Phillips®/Robertson) head for maximum installer flexibility
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Flush mounting
  • Long, broad mounting strap helps reach large panel cut-outs for code compliance
  • Nylon face, PVC base
  • Screw catch feature on duplex devices speeds mounting of wallplates
  • Tapered back wiring lead-in slots assist in gathering stranded wires for faster, more secure connections
Standard
Federal Specification Classification 6233 01,NOM,cULus Listed
Sub_Brand
Eaton Wiring Devices
Type
Industrial
