RAB Lighting RAB Lighting RWLED3T78/PCT


Description

Industry Description

ROADWAY TYPE III 78W WITH ROADWAY ADAPTOR COOL 120-277V PCT BRONZE

Modified Industry Description

ROADWAY TYPE III 78W WITH ROADWAY

AD Description

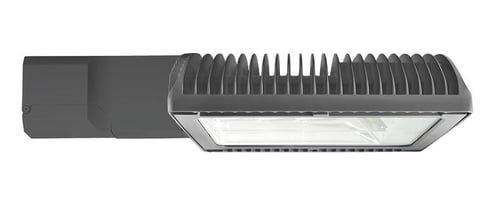

RAB RWLED3T78/PCT Type III Standard Universal Adapter Roadway Light, (6) LED Lamp, 78 W Fixture, 120/208/240/277 VAC, Bronze/Polyester Powder Coated Housing

Vendor Description

LED roadway lighting that's easy to buy. Free trial program and leasing options make it easy to get started with LED. Specification optics deliver efficient, clean, uniform light distributions at a reasonable cost. Optics are factory installed and meet IES lateral distribution type III. LROAD™ 78 W replaces 250 W metal halide roadway fixtures.

Specifications

Amperage Rating
0.66 A, 0.41 A, 0.35 A, 0.3 A
Application
Outdoor
Color
White
Country of Origin
US
Dimensions
24.4 in L x 15 in W x 4.5 in H
Lamp_Type
LED
Lumens
6911
Mounting_Type
Arm
Special Features

  • 27 years lifespan dramatically reduces maintenance and relamping costs
  • 7-step MacAdam ellipse binning to achieve consistent fixture to fixture color
  • Compatible with standard roadway arms
  • Die cast aluminum housing, lens frame and mounting arm, specular vacuum metalized polycarbonate
  • Easy access electrical compartment makes wiring fast and secure
  • Environmentally friendly polyester powder coatings are formulated for high durability and longer color and contains no VOC or toxic heavy metals
  • High temperature silicone gaskets, mercury and UV-free
  • Industry leading 5G vibration rating per ANSI C136.31
  • No photocell, no bi-level, no dimming
  • Precision optics deliver maximum downward street side lumens with uniformity and minimal glare
  • Replaces 250 W metal halide roadway fixtures
  • Suitable for wet locations as a downlight
  • Superior thermal management design with external advanced fins provides maximum operational life, even in high ambient temperature environments
  • The minimum starting temperature is -40 deg C
  • Universal adapters for 1 in, 1-1/4 in, 1-1/2 in and 2 in OD pipe included
Type
Type III Standard Universal Adaptor
Voltage Rating
120/208/240/277
Wattage
78
