Cooper Wiring Cooper Wiring CS220W


Description

Industry Description

Switch Toggle DP 20A 120/277V Swire WH 4488405

AD Description

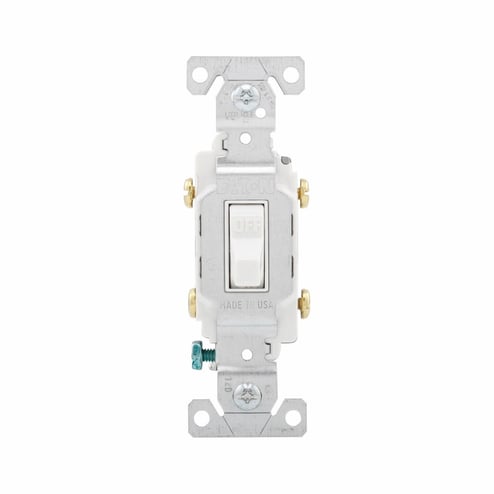

EATON Arrow Hart™ Eaton Wiring Devices CS220W Heavy Duty Specification Grade AC Toggle Switch, 120/277 VAC, 20 A, 1/2 hp Power Rating

Vendor Description

Commercial grade AC quiet switches side wire. Heavy duty cam action mechanism insures quiet switch action. Side wire terminals accept up to #10 solid or stranded wire. Ground screw terminal standard.

Specifications

Amperage Rating
20 A
Application
NON-RESI SWITCHES
Color
White
Country of Origin
US
Dimensions
1.3000 X 0.9020 X 4.2000
Length1
1.3000
Material
PVC
Number_Of_Poles
2
Special Features

  • 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications
  • 14 to 10 AWG terminal
  • 2.38 in L back
  • 3.28 in L screw to screw
  • Color coded strap marking identifies amperage
  • Nylon toggle
  • Patent pending spring cup toggle design for robust actuation
  • Terminal screws backed out and ready for wiring
  • Terminals accept up to 10 AWG solid or stranded wire
  • Tri-combo head mounting and terminal screws ease installation
Standard
NOM,cULus Listed,Federal Specification Classification 6241 05
Sub_Brand
Eaton Wiring Devices
Type
Commercial
Voltage Rating
120/277
