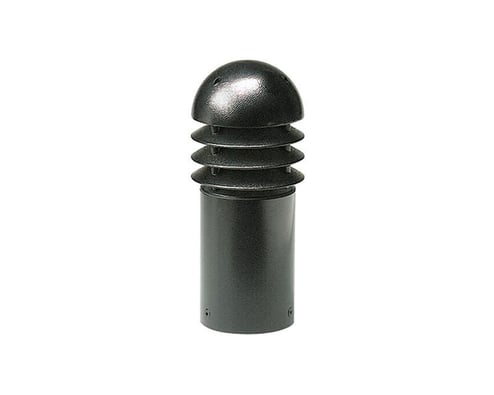

Lightolier Lightolier DB14-H


Description

Industry Description

The DB Series is a line voltage Bollard, available in incandescent, CFL, HID and LED sources. This versatile luminaire features a dome roof with die-cast aluminum louvers, and in a variety of heights. Optics include a symmetric, die-cast aluminum louvers with underside painted with highly reflective white powdercoat and a tempered glass globe. The LED sources features a 9.5W Philips LED EnduraLED lamp, LED 4Kv medium base porcelain socket A19. The 2700K warm white delivers 800 lumens and the lamp life is rated at 25,000 hours.

Modified Industry Description

120V 100W INC RNDTOP BOLLARD

AD Description

Signify Luminaires Hadco® DB14-H Conventional Line Voltage Round Bollard Light,) A19 LED/Incandescent Lamp, 100 W Fixture, 120 VAC, Bronze Thermoset Polyester Powder Coated Housing

Vendor Description

The dB series is a line voltage Bollard available in incandescent, CFL, HID and LED sources. This versatile luminaire features a dome roof with die cast aluminum louvers and in a variety of heights. Optics include a symmetric, die cast aluminum louvers with underside painted with highly reflective white powder coat and a tempered glass globe. The LED sources features a 9.5 W Philips LED Endura LED lamp, LED 4Kv medium base porcelain socket A19. The 2700 K warm white delivers 800 Lumens and the lamp life is rated at 25000 hr.

Specifications

Application
Outdoor
Color
Black
Country of Origin
USA
Dimensions
5 in Dia x 14 in H x 6 in W
Lamp_Type
A19 LED/Incandescent
Length1
18.5000
Lumens
800
Mounting
Ground / Floor
Mounting_Type
Threaded
Series
DB14
Special Features

  • 3 in bolt circle
  • Available with a variety of light sources, including LED
  • CraftStone or polyester powder coat finish
  • Die cast aluminum dome and louvers
  • Die cast aluminum louvers with underside painted with highly reflective white powder coat
  • Easy access to lamp
  • Ensures long lasting durability
  • Extruded aluminum with 1/8 in THK wall
  • Highly weather resistant
  • Internal (3) 3/8 in Dia x 8 in L (1 x 20 cm) anchor rods
  • Non-ferrous fasteners prevent corrosion and ensure longer life
  • Quick disconnects for easy installation and removal
  • Slotted ballast assembly is mounted to an aluminum plate, which is mounted inside the base
  • Symmetric
  • Thermoset polyester powder coat is electrostatically applied after a five-stage conversion cleaning process and bonded by heat fusion thermosetting
  • Thermoset polyester powder coated
  • Tightly sealed protection
  • Tube is mounted to the base plate with three (3) 5/16-18 flat head allen key stainless steel tamper resistant screws
Sub_Brand
Hadco
Type
Conventional Line Voltage Round
Vendor
Signify
Voltage Rating
120
