Panduit Panduit CXS35-36-C
Panduit CXS35-36-C
Kirby Risk #: 3254414
UPC: 07498387833, 074983878338, 00074983878338
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description

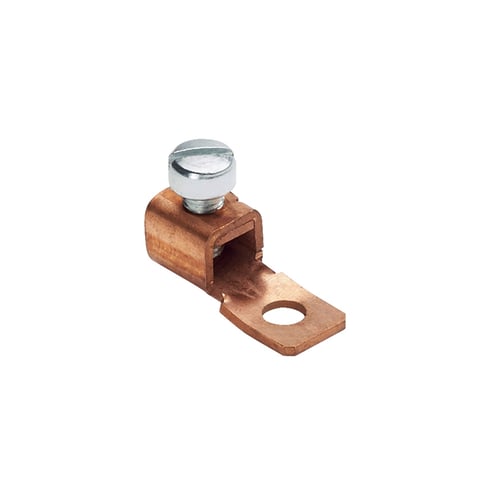

One-hole, copper, single barrel, straight fixed tongue lug, #14 - #6 AWG, 3/16 (4.8mm) stud hole.
Modified Industry Description
CUMECHLUG,SFT,#14-#6AWG,3/16INSTUDPK
AD Description
Panduit® Pan-Lug® CXS35-36-C Single Barrel Mechanical Lug, 14 to 6 AWG Stranded Copper Conductor, 3/16 in Stud, 1 Bolt Hole, Copper
Specifications
| Amperage Rating |
NA
|
|---|---|
| Application |
Copper Mechanical Lug
|
| Conductor Type |
Stranded Copper
|
| Conductor Size |
14 to 6
|
| Country of Origin |
MEX
|
| Dimensions |
1.08 in L x 0.38 in W x 0.39 in H
|
| Finish |
Tin Plated
|
| Insulation |
Non Insulated
|
| Length1 |
4.8000
|
| Material |
Copper
|
| Series |
CXS
|
| Special Features |
|
| Standard |
cULus Listed for use up to 600V & Temperature Rated to 90°C
|
| Sub_Brand |
Pan-Lug
|
| Temperature_Rating |
90
|
| Type |
Single Barrel
|
| Voltage Rating |
600
|
