Dodge Dodge 069705


Description

Industry Description

F4S-IP-203R

AD Description

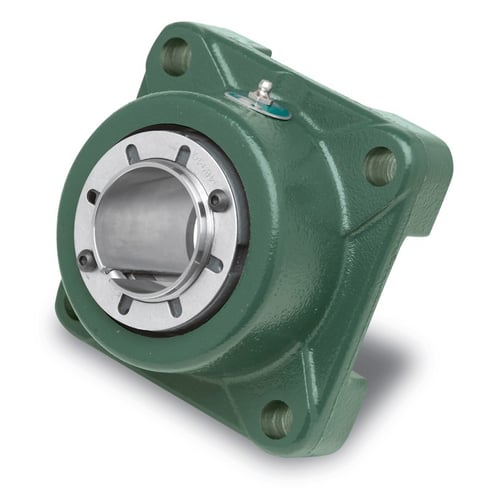

Baldor Dodge® 069705 203 Imperial Non-Expansion Square Flange Mount Bearing, 2-3/16 in Dia Bore, 4.52 in L Bolt Center-to-Center, 6.38 in Dia Bolt Circle, 4-Bolt Flange Mount, 5.88 in OAL/Dia

Vendor Description

Dodge® spherical bearings, including imperial bearings, are general purpose, high capacity, double row spherical roller bearings. All imperial bearings are mounted in 1-piece, precision machined housings. Bearings are mounted to shafts by means of a patented adapter system that improves concentricity and reduces inherent vibration. ASTM A48 Class 30 cast iron is the standard material used in imperial housings. Housing designs are available for survival in extremely harsh environments, through the use of special finishes and stainless hardware. Housings are available in a variety of standard configurations, including pillow blocks, flanges, piloted flanges and take-up bearings. Trident triple lip contact seals and labyrinth seals are available on imperial bearings.

Specifications

Country of Origin
USA
Special Features

  • Adapter sleeve improves concentricity and reduces inherent vibration
  • All housings are class 30 gray iron
  • Ease in mounting and dismounting achieved through patented adapter system
  • Grease limiting speeds 30% higher than setscrew mounts
  • Less shaft damage vs setscrew mounts
  • Push-pull adapter mount
  • Reduced vibration damage vs setscrew mounts
  • Seal/land on OD of inner ring maintains full contact pressure even when misaligned
  • Shaft ready installation
  • Steel cage with guide rings offers precision roller guidance
  • Superior holding power reduces the fretting corrosion caused by vibration
