Siemens Siemens 6EP19332NC11


Description

Industry Description

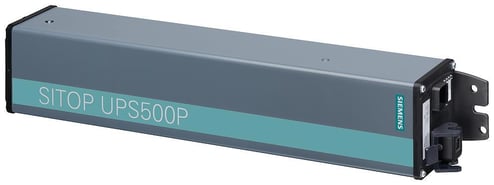

SITOP UPS500P SERVICE-FREE UNINTERRUPTIBLE POWER SUPPLY WITH USB-INTERFACE BASIC UNIT 10 KWS INPUT 24 V DC OUTPUT 24 V/7 A DC DEGREE OF PROTECTION IP65

Modified Industry Description

SITOP UPS500P 7 A/10 KWS, IP65

AD Description

Siemens 6EP19332NC11 SITOP 6EP/UPS500P UPS Basic Unit, 24 VDC Input, 24 VDC Output, 168 W Power Rating

Vendor Description

In many PC based automation solutions, more serious damage from a power failure can be prevented by bringing the plant to a defined state. The backing up of operating data necessary for this purpose and the subsequent controlled shutdown of the PC generally takes about a minute. The totally maintenance-free and high capacitance double layer capacitors of the SITOP UPS500 provide sufficient power for this. Communication with the automation computer can be easily implemented thanks to the USB interface.

Specifications

Country of Origin
DE
Length1
21.0600
Special Features

  • 24 V buffering for a few minutes to allow data to be backed up and applications to be closed
  • Absolutely maintenance-free
  • Buffering for periods up to several minutes depending on the load current and DC UPS configuration
  • Diagnostics via signaling contacts and USB
  • Distributed applications possible without control cabinet
  • Easy PC integration with software tool
  • High ambient temperatures up to 60 deg C
  • Long lifetime, even at high temperatures
  • Long service life eliminates the need to replace batteries - after 8 years, the ultracapacitors still have 80% of rated capacity at 50 deg C ambient temperature
  • No ventilation is required since no gas is emitted
  • No ventilation of the mounting location required
  • Short charging times
  • Software tool, free of charge, for easy configuring and integrating in PC based systems
  • Totally maintenance-free double layer capacitors
  • UPS500P IP65 version for use outside the control cabinet
  • USB interface for PC communication
