Siemens Siemens 17DUD92BF10


Description

Industry Description

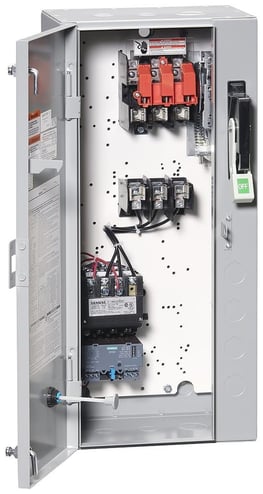

Non-reversing motor starter, Size 1, Three phase full voltage, Solid-state overload relay, OLR amp range 5.5-22A, 110V 50Hz / 120V 60Hz coil, Combination type,30A fusible disconnect, 30A/250V fuse clip, Enclosure NEMA type 1, Indoor general purpose use, Standard width enclosure

AD Description

Siemens 17DUD92BF10 SZ 1 Class 17 Full Voltage Heavy Duty Non-Reversing Combination Starter With 30 A, 250 V Fusible Disconnect Switch, 110/120 VAC Coil, 3 Poles, NEMA 1

Specifications

Country of Origin
US
Special Features

  • 100 kA short circuit current rating when protected with Class R fuses to 600 V or MCP to 480 V
  • 120 VAC at 60 Hz, 110 VAC at 50 Hz coil voltage
  • 3 hp at 200/208 VAC, 3 hp at 220/230 VAC
  • Box lug line side, screw terminal load side outgoing feeder connection
  • Easy to install
  • Heavy duty quarter turns
  • Industrial type disconnect handle
  • Manufactured with cold forming "TOX" process
  • Visible blade disconnect
