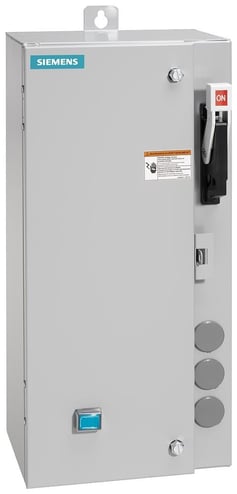

Siemens Siemens 18DUD92NC


Description

Industry Description

Non-reversing motor starter, Size 1, Three phase full voltage, Solid-state overload relay, OLR amp range 5.5-22A, 220 240/440 480VAC 60Hz coil, Combination type, 25A circuit breaker, Enclosure NEMA type 4/12, Water/dust tight for outdoors,Standard width enclosure

AD Description

Siemens 18DUD92NC SZ 1 Class 18 Dust/Watertight Full Voltage Heavy Duty Non-Reversing Weatherproof Combination Starter With 25 A Circuit Breaker, 190 to 220 VAC, 220 to 240 VAC, 380 to 440 VAC, 440 to 480 VAC Coil, 3 Poles, NEMA 12

Specifications

Country of Origin
US
Special Features

  • 100 kA short circuit current rating when protected with Class R fuses to 600 V or MCP to 480 V
  • 220 to 240 VAC, 440 to 480 VAC at 60 Hz, 190 to 220 VAC, 380 to 440 VAC at 50 Hz coil voltage
  • 3 hp at 200/208 VAC, 3 hp at 220/230 VAC, 7-1/2 hp at 460/480 VAC, 10 hp at 575/600 VAC
  • Box lug line side, screw terminal load side outgoing feeder connection
  • Easy to install
  • Heavy duty quarter turns
  • Industrial type disconnect handle
  • Manufactured with cold forming "TOX" process
  • Visible blade disconnect
