Panduit Pan-Net Panduit Pan-Net ZDF48-6RA
Panduit Pan-Net ZDF48-6RA
Kirby Risk #: 3193336
UPC: 61305616855, 00613056168558
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit Pan-Net
Description
Industry Description

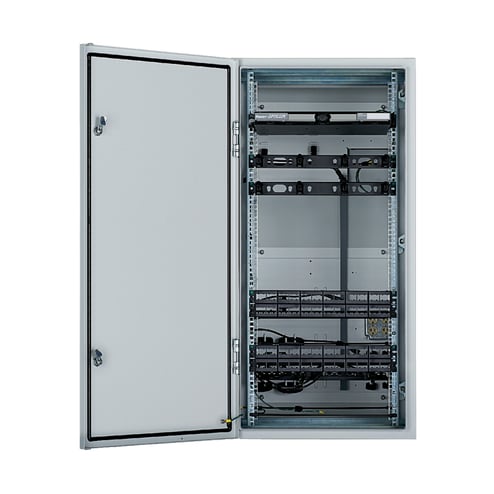

Pre-configured industrial distribution frame enclosure, 316 stainless steel, ready for two access and two distribution switches.
Modified Industry Description
INTERGRATED NETWORK ZONE SYSTEM
AD Description
Panduit® IndustrialNet™ ZDF48-6RA Pre-Configured Industrial Distribution Frame Enclosure, 48.54 in L x 23.62 in W x 31 in D, NEMA 4X/12/IP66, 316 Stainless Steel
Vendor Description
Rack mount EtherNet switches shall be deployed and protected with an industrial distribution frame (IDF) enclosure which meets UL 508A, UL type 4/12 or 4/4X/12 and IP66. The IDF shall be thermally and spatially validated for use in environments up to 50 deg C. There shall be a wall mount option with secure front and rear switch access. The IDF shall accommodate two distribution layer switches and up to three access layer switches with ups for commonly used copper and fiber based deployments. Optimized power cables, receptacles and grounding shall be pre-installed in the enclosure. A standardized, pre-configured equipment and accessory layout shall be included.
Specifications
| Application |
Industrial Automation
|
|---|---|
| Color |
Gray
|
| Country of Origin |
USA
|
| Length1 |
64.0000
|
| Material |
316 Stainless Steel
|
| Mounting |
Wall Mount
|
| Special Features |
|
| Standard |
UL 508A Standard for Industrial Control Panels, cUL Listed per CSA, UL Type 4/12 or 4/4X/12 and IP66 Rated; RoHS Compliant
|
| Sub_Brand |
Panduit
|
| Type |
Industrial Distribution Frame
|
