General Cable General Cable 02466.35T.05


Description

Industry Description

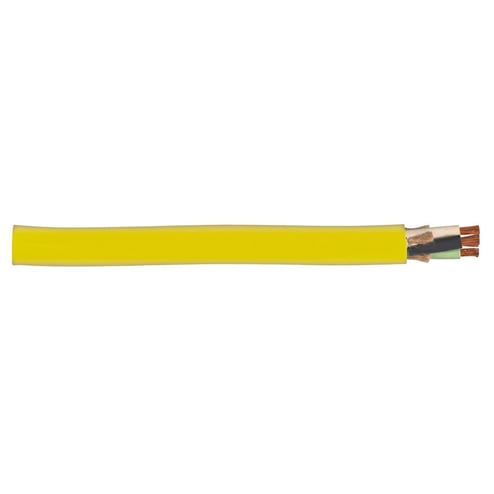

Carolprene® Jacketed Type SOOW 90°C 600V UL/CSA Portable Cord, 16/4 SOOW 600V-Yellow-250' REEL

Modified Industry Description

16/4 SOOW YELLOW 600 V CORD

AD Description

Carol® 02466.35T.05 Type SOOW Portable Cord, 600 VAC, (4) 16 AWG Fully Annealed Stranded Bare Copper Conductor, 250 ft Reel L

Vendor Description

General Cable® Carol® brand is the most recognized name in flexible cord for temporary power whether its plastic, rubber or specialty constructions, in applications requiring 600 volts or less. The extensive line includes portable cord, cordsets, portable power cable and premium-grade cable for commercial and industrial applications, including for use on constructions sites, in plants and factories or entertainment venues.

Specifications

Amperage Rating
10
Application
• PORT tools and equipment • PORT APLs • SM MOTRs and associated machinery • Food processing plants and equipment • Marinas/docks • Shipyards • OEM/MRO • OSHA VPP Safety • Construction site PWR • INDL Plants • Mining
Color
Black
Conductor Type
Fully Annealed Stranded Bare Copper
Conductor Size
16
Country of Origin
USA
Length1
250 ft Reel
Number Of Conductors
4
Outside_Diameter
0.42
Special Features

  • 0.03 in THK nominal insulation
  • Carol® size type SOOW 90 deg C P-7K-123033 MSHA 300 VAC RoHS
  • Carol® size type SOOW 90 deg C P-7K-123033 MSHA 600 VAC RoHS
  • Good tensile strength, elongation and aging characteristics
  • High flexibility
  • Premium grade, color coded 90 deg C EPDM insulation
  • Resist to abrasion, oil, moisture, ozone, sunlight (UV), water and weather
  • TRU-Mark® sequential footage marking
  • UL listed and CSA certified for indoor and outdoor use
Sub_Brand
Carol
Temperature_Rating
-40 to 90
Type
Type SOOW
Voltage Rating
600
