Thomas & Betts Thomas & Betts X-1-U-33640
Thomas & Betts X-1-U-33640
Kirby Risk #: 3186340
UPC: 78378675963, 783786759637, 00783786759637, 50783786759632
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

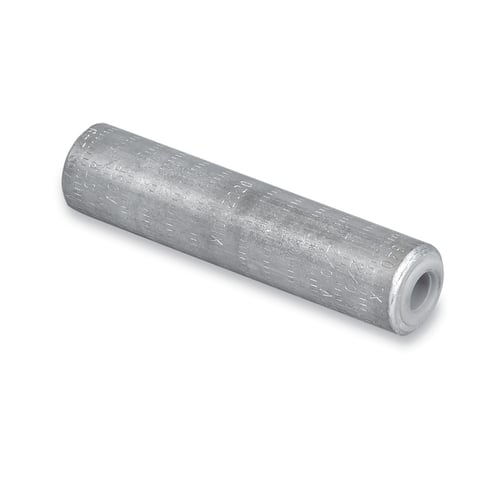

Uninsulated Aluminum Service Entrance Compression Splices - 840 die series, Conductor A: Brown, 397.5-400 Solid Aluminum, - Solid Copper, 300-350 Stranded, 336.4(18/1) ACSR, Conductor B: Pink, - Solid Aluminum, - Solid Copper, 4/0 Stranded, 4/0 ACSR. For AL to AL or AL to CU Conductors.
Specifications
| Application |
Ideal for Large Residential and Commercial Service Drops.
|
|---|---|
| Color |
Brown/Pink
|
| Connection |
Compression
|
| Country of Origin |
US
|
| Insulation |
None
|
| Length1 |
13.5000
|
| Material |
Aluminum
|
| Number Of Conductors |
2
|
| Size |
4 long
|
| Special Features |
Constructed from Aluminum. Provides high conductivity. Prefilled with Oxide inhibitor to prevent oxidation and keep out moisture. Solid center barriers Enable quick Positioning, Proper Distribution of Inhibitor around the wire and Current Equalization on Stranded Conductors. Splices are marked with strip lengths, die codes, and compression locations for easy identification and easy installation.
|
| Standard |
ANSI C119.4
|
| Type |
Compression Splice Service Entrance Insulated
|
