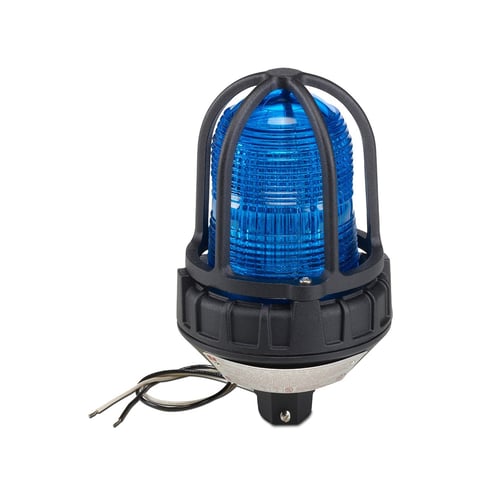

Federal Signal Federal Signal 151XST-012-024B

Industry Description

Hazardous Location Warning Light, 12-24VDC, Pipe Mount, Blue - Available in 12-24VDC, 120VAC and 240VAC. Five dome colors: Amber, Blue, Clear, Green and Red. 10,000-hour high-intensity strobe. Available in 3/4-inch NPT pipe mount or surface mount. Dome guard included. Indoor/outdoor use. Type 4X, IP66, IP69K enclosure. Marine rated. UL and cUL Listed for Class I, Division 2, Groups A, B, C and D & Class II, Division 1, Groups E, F and G & Class III.

Modified Industry Description

Strobe, 12-24VDC, hazardous

AD Description

Federal Signal 151XST-012-024B Flashing Warning Light, 12 to 24 VDC, Strobe Tube Lamp, 5-1/2 in Dia, Surface Mount, Blue Lens

Vendor Description

Federal signal model 151XST hazardous location strobe light provides 80 high intensity flashes per minute. This warning light is available in 12 to 24 VDC, 120 VAC and 240VAC, 50/60Hz. The model 151XST strobe light is UL listed and CSA certified for class I, division 2, groups A, B, C and D, class II, division 1, groups E, F and G and class III. The 151XST meets type 4X watertight dusttight and corrosion-resistant requirements and is constructed to IP66. This hazardous location warning light has an aluminum base, coated for corrosion resistance, that can be ordered for mounting on a 3/4 in NPT pipe or a surface. The dome guard (included) fits over the glass dome to protect it against accidental collision with moving equipment, such as forklifts. The 151XST produces 165 effective candela (ECP) and 520000 peak candela. It is available in five dome colors including amber, blue, clear, green, magenta and red. Federal signal rugged 151XST strobe warning light is specifically designed for hazardous locations or corrosive environments where a very bright visual signal is required. This warning light can be used for plant evacuation or other communication needs.
