Southwire Southwire 55280303


Description

Industry Description

4-3 STR CU THHN BLACK/WHITE/RED STEEL AC 500 FT

AD Description

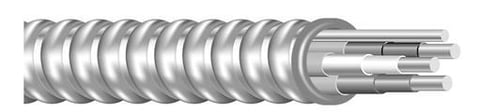

Duraclad® 55280303 Type AC THHN Interlocked Armored Cable, 600 VAC, (3) 4 AWG Stranded Copper Conductors, 500 ft Reel L

Vendor Description

Southwire Duraclad® type AC cable is constructed with soft drawn copper, type THHN insulated conductors which are individually wrapped with a moisture-resistant, flame retardant paper covering. Steel interlocking armor is applied over the assembly. A 16 AWG aluminum bond wire is placed inside the armor, runs longitudinally, and is in intimate contact with the armor for its entire length.

Specifications

Amperage Rating
95
Conductor Type
Stranded Copper
Conductor Size
4 AWG
Country of Origin
USA
Length1
500 ft Reel
Number Of Conductors
3
Outside_Diameter
1.06
Special Features

  • An armor assembly (combination of the interlocked armor and bonding strip) that is recognized as an equipment grounding/bonding conductor per NEC 250.118(8)
  • Anti-short/insulating bushings supplied with every reel or coil
  • Cable reverse wound on reel for ease of pulling and installation
  • Reduces installation costs up to 50% over pipe and wire
  • When pulling from coils, pull from inside to ensure ease of installation
Sub_Brand
Duraclad
Temperature_Rating
90
Type
Type AC THHN
Voltage Rating
600
