Cooper Wiring Cooper Wiring SGF20V


Description

Industry Description

GFCI Self Test Duplex 20A 125V IV 4750052

AD Description

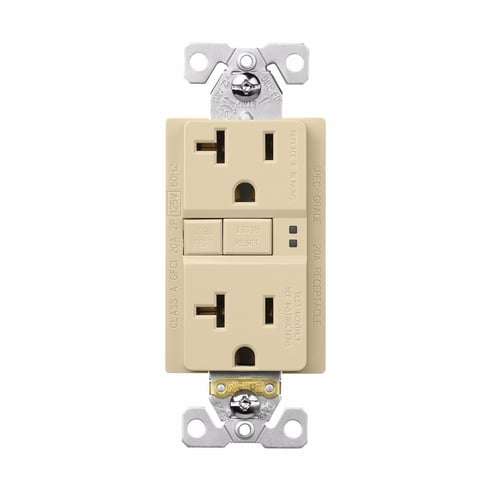

EATON Arrow Hart™ Eaton Wiring Devices SGF20V Duplex Grounding Self-Test GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory

Vendor Description

EATON arrow Hart™ line of GFCI receptacles ensure electrical shock protection with periodical automatic testing. If no GFCI protection is present, the receptacle will render itself inoperable and a red indicator light will glow notifying the user there is no power and the device must be replaced. GFCI receptacles are available in a number of grades including hospital, tamper-resistant, non-tamper resistant and weather-resistant, as well as a variety of colors including white, ivory, almond, light almond, black, brown, gray and red.

Specifications

Amperage Rating
20 A
Application
GFCI
Country of Origin
CN
Dimensions
2.8230 X 2.0100 X 4.6350
Length1
2.8230
Special Features

  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Ground termination with Back-wire clamp provides secure wiring and reduces installation time
  • Horizontal test/reset button alignment provides larger unobstructed area
  • Line load miswiring protection, GFCIs will not provide power downstream when wired incorrectly
  • Line side terminals are backed out and staked for fast installation
  • Longer, wider bridged strap provides 40% more contact area with wallboard, virtually eliminating floating installations
  • Meets and exceeds 10 kA short circuit testing and UL 943 safety standards
  • Performs periodic self-tests to ensure integrity of GFCI protection
  • Tamper-resistant shutters help prevent foreign objects from being inserted
  • Tapered Back-wire openings handle multiple wire sizes and types for applications up to 10 AWG solid or stranded wire
  • Test and reset buttons are color matched to provide superior aesthetics
  • Tri-combo head terminal and mounting screws
  • UL listed, fully compliant with all latest UL 943 class A GFCI requirements
  • Visual indicator lights give quick notification of a tripped or end of life condition
  • When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
Standard
cULus Listed,NOM
Sub_Brand
Eaton Wiring Devices
Type
Commercial
Voltage Rating
125V
