Siemens Siemens 40407-9

Name: Siemens 40407-9
Brand: Siemens
SKU: 3177592
Price: 570.19 USD
Availability: InStock

Siemens 40407-9

Kirby Risk #: 3177592

UPC: 78364318601, 783643186019, 00783643186019

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Siemens

Description

Industry Description

200A 7J RGLS 1POS LVRBPS MS OH/UG

AD Description

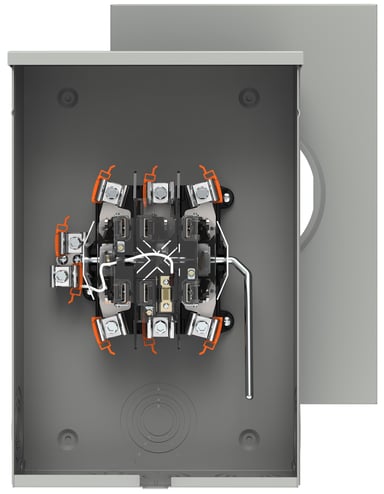

TALON® 40407-9 Type HQU 1-Position Continuous Duty Meter Socket With Lever Bypass, 600 VAC, 200 A, 3 ph Phase, NEMA 3R Enclosure

Amperage Rating	200
Application	Commercial
Country of Origin	MX
Enclosure	Steel
Frequency_Rating	False
Length1	22.0000
Mounting	SURFACEMOUNTING
Operating_Temperature	Average Ambient
Phase	3
Size	5.000X13.000X22.000
Special Features	100% rated lever bypass with clamping action on meter Constructed of 16 ga galvannealed steel with polyester powder finish, suitable for indoor or outdoor installation Cover cannot be replaced with lever in bypass position Glass fiber reinforced polyester, high strength arc and track resistant block assembly Lay-in type with dome point screw, conservatively rated at 200 A, terminals will accommodate conductors from 1 AWG to 350 kcmil copper or aluminum Lever operated jaw release, full 200 A bypass capacity, moving lever up closes bypass and releases pressure on meter terminals Plated copper current path Polycarbonate track resistant insulating safety shield provides protection from accidental shorts and shocks Silver brazed connection
Standard	UL
Type	HQU
Voltage Rating	600
