O-Z/Gedney O-Z/Gedney 4Q475LT


Description

Industry Description

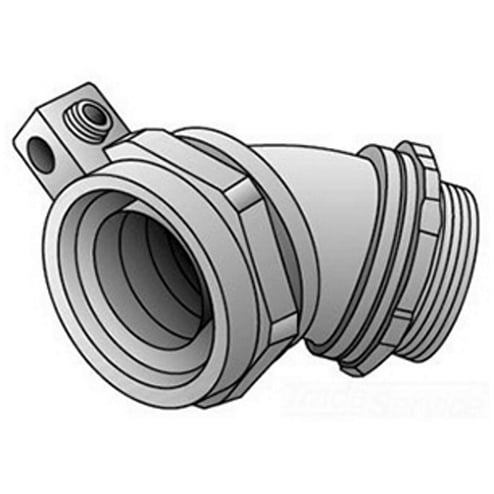

OZ-Gedney Ground-Tite Type 4Q-LT Grounding Liquid Tight 45 DEG Connector With Lug, Size: 3/4 IN, Connection: Compression X Tapered MNPT Hub, Conductor Range: 14 - 4 AWG, Malleable Iron Body And Nut, Steel Ferrule, Finish: Zinc Electroplated, NEMA Rating: NEMA 4, Insulated Throat, 2-1/8 IN Width, Dimension A: 2-1/16 IN, 1-5/16 IN Turning Radius Gland Nut, 9/16 IN Thread Length, Third Party Certification: UL File Number E-24264, CSA 9795, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20, For Liquidtight Flexible Metal Conduit

Modified Industry Description

3/4 IN 45 DEG CONN LFMC W/LUG

Specifications

Application
For Liquidtight Flexible Metal Conduit
Connection
Compression X Tapered MNPT Hub
Country of Origin
MX
Dimensions
2.62 in H x 2-1/8 in W
Finish
Zinc Electroplated
Insulation
Insulated Throat
Length1
5.7000
Material
Malleable Iron
NEMA_Rating
NEMA 4
Series
4Q-LT
Size
3/4
Special Features

  • Bonding wedge locknuts are recommended in hazardous locations
  • Capable of withstanding high ground fault
  • Compact, slim diameter with small turning radius
  • Grounding lug is cast as an integral part of malleable iron gland nut
  • Inspection windows in ferrule to ensure full conduit engagement
  • Intrinsically safe
  • Long ferrule prevents pullout and tight bend conduit "pop-out"
  • Tapered threaded male NPT hub
Standard
Third Party Certification: UL File Number E-24264, CSA 9795, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20
Type
Concretetight Liquidtight Oiltight Positive Grounding Raintight
